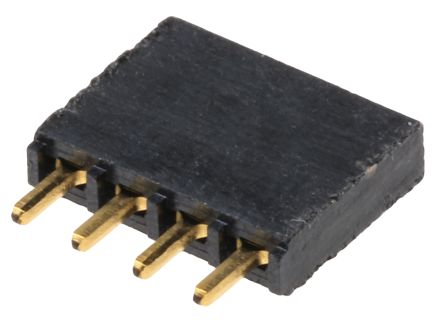

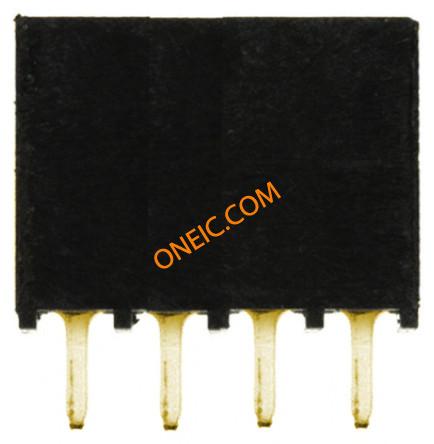

点击放大查看
SSQ-104-01-G-S
| 制造商 | |
| 描述 | Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 4POS SNGL GOLD Samtec SSQ Series 2.54mm 4 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, SINGLE, 4WAY Samtec SSQ 系列 4路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 其他名称 | SAM1180-04 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 550 V ac | 接触电阻 | :10mohm |
| 最大额定电流 | 7.6A | 最小输入电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 2.41 |
| 间距 | 2.54 mm | 高度 | 8.51 |
| 重量 | 0.001 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 10.67 | 连接器颜色 | :Black |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | SSQ | 加载位置数 | All |
环境参数
| 工作温度 | :125°C | ||
