点击放大查看

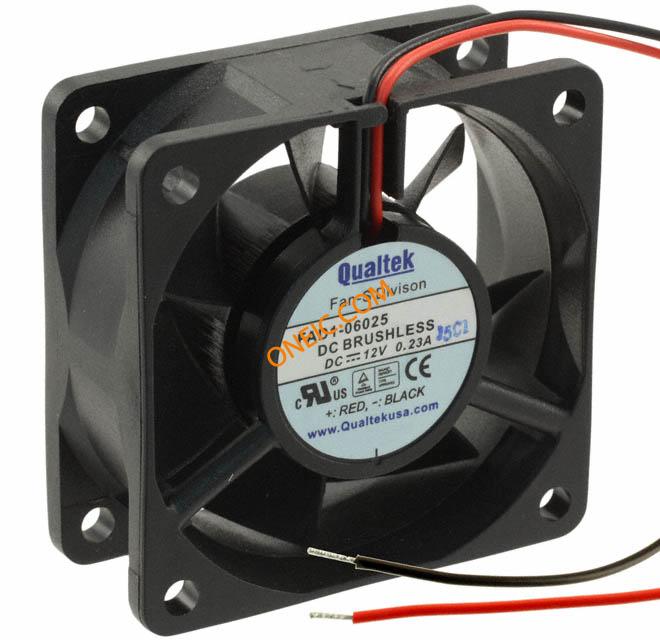

FAD1-06025CBMW12
| 制造商 | Qualtek Electronics Corp. |
| 描述 | FAN 60X25MM BALL 12VDC WIRE Fans DC FAN 60x25mm Ball 12VDC WIRE Fan;DC;12V;60x60x25mm;Sq;0.506CFM;0.96W;27.9dBA;3500RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 119 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 300 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 噪声 | 27.9 dB(A) | 转速 | 3500 RPM |
| 功率（瓦） | 0.96W | 额定功率 | 960 mW |
| 额定电压 | 12VDC | 供电电压 | 12 V |
| 最大额定电流 | 0.080A | ||
机械参数
| RPM | 3500 RPM | 尺寸 | 2.36x1(60x25)In.(mm) |
| 重量 | 0.117 lb (53.07g) | 风量 | 17.9 CFM (0.507m³/min) |
| 风扇类型 | Tubeaxial | 材料（通用） | Plastic |
| 旋转范围 | CW | 端接方式 | 2 Wire Leads |
| 轴承类型 | Ball | 静压 | 0.125 in H2O (31.1 Pa) |
| 壳体材料 | Plastic | 刀片材料 | Plastic |
| 框架材料 | Plastic | 主要材料 | Fans |
| 尺寸/外形 | Square - 60mm L x 60mm H x 25mm W | 端接样式 | Wire Leads |
| 风扇附件类型 | 2.36x1(60x25)In.(mm) | 总体尺寸 | 2.36x2.36x1In. |
产品信息
| 类型 | Axial Fans | 功能 | DC |
| 方向 | ExhaustoverStruts | 开关类型 | DC |
| 制造商全称 | FAD1-06025Series | 配置 | Square |
环境参数
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) | 自然散热热阻 | 0.506CFM |
| 结工作温度 | 70°C | ||
文档与媒体
