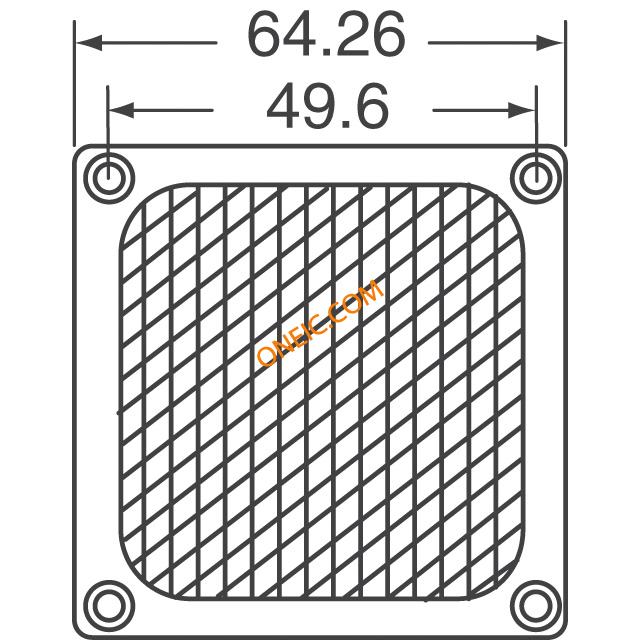

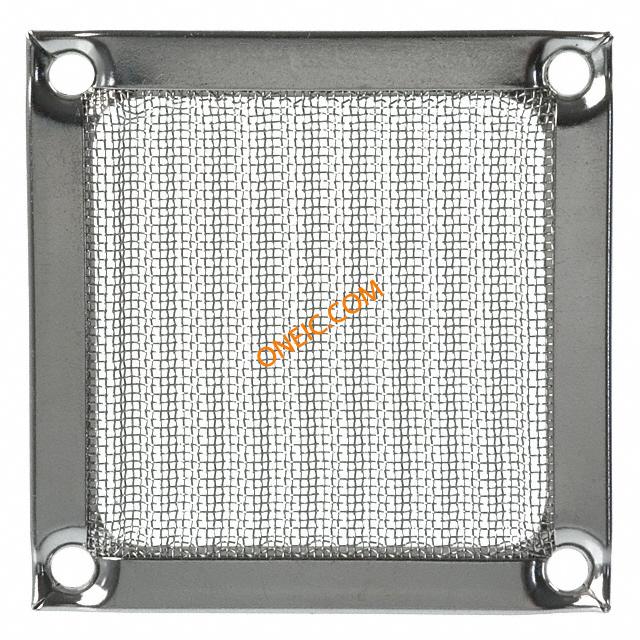

06250-SS
| 制造商 | Qualtek Electronics Corp. |
| 描述 | Fan Cords & Accessories STEEL FILTER 60MM FAN FILTER/SCREEN STEEL 60MM Filter; 06 Series; 2-1/2 in. Fan; Stainless Steel; 2.36 in. H x 0.138 in. W Fan Accessories STEEL FILTER 60MM Thrml Mgmt Access Fan Filter Screen Stainless Steel EMI/RFI Fan Filter Filter;06Series;2-1/2in.Fan;StainlessSteel;2.36in.Hx0.138in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 60 mm - 2 1/2 in. Use With Fan Size (in.): 2.5 Finish: Stainless Steel Sixz (inches) H (sq): 2.36 Size (inches) Thickness: 0.138 M/C: 1.95 |
| 分类 |
商业参数
| 产品 | Fan Accessories | 交货时间 | 112 Days |
| 子类别 | Thermal Management Accessories | 产品类别 | Fan Cords & Accessories |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85339000 |
机械参数
| 颜色 | Natural | 长度 | 60 mm |
| 重量 | 0.014 | 风扇类型 | :60mm |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 基体材料 | :Stainless Steel | 适配风扇尺寸 | 60 mm |
| 屏蔽材料 | :Stainless Steel | 风扇附件类型 | Filter/Screen |
| 安装孔间距 | :50mm | ||
产品信息
| 类型 | Filter Screen | 产品特性 | Washable in solvent or degreaser |
| 附件类型 | :EMI / RFI Fan Filter | 适用产品/相关产品 | :Qualtek 60mm Axial Fans |
文档与媒体
相关型号
EFB0612HHA-F00
Delta Electronics
DC Fan Ball Bearing 12V 0.18A 2.16W 4800RPM 21.19CFM 36.5dB Flange Mount 12V DC FAN 60X60X10 MM
AFB0612L-A
Delta Electronics
DC Fan Ball Bearing 12V 0.08A 0.96W 3100RPM 16.81CFM 26.5dB Flange Mount FAN DC AXIAL 12V 60X25.4 3100RPM
AFB0648HH-A
Delta Electronics
DC FAN 48V DC FAN 60X60X25.4 MM
EFB0612HHA-F00
Delta Electronics, Inc.
12V DC FAN 60X60X10 MM DC Fan Ball Bearing 12V 0.18A 2.16W 4800RPM 21.19CFM 36.5dB Flange Mount
AFB0612L-A
Delta Electronics, Inc.
FAN DC AXIAL 12V 60X25.4 3100RPM DC Fan Ball Bearing 12V 0.08A 0.96W 3100RPM 16.81CFM 26.5dB Flange Mount
AFB0612H-AF00
Delta Electronics, Inc.
12V DC FAN 60X60X25.4 MM

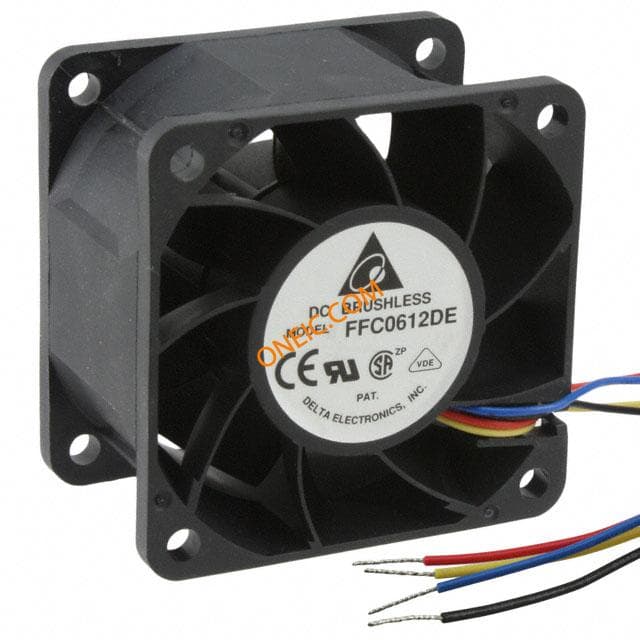

FFC0612DE-F00
