点击放大查看

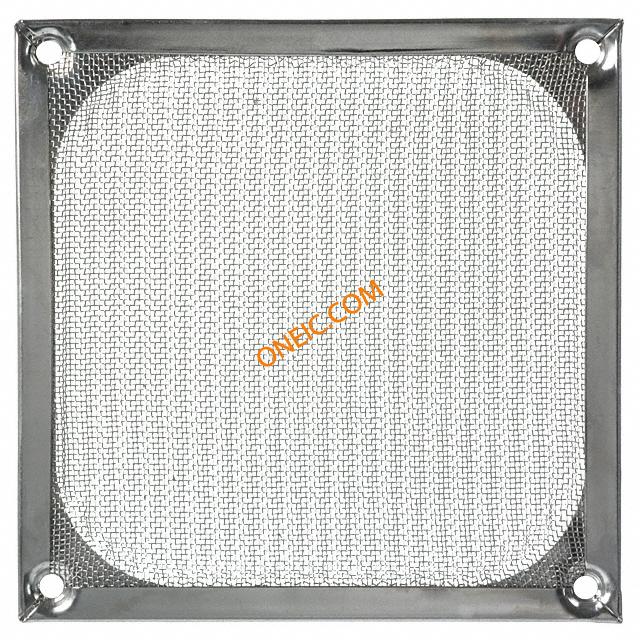

06450-SS
| 制造商 | Qualtek Electronics Corp. |
| 描述 | Fan Cords & Accessories STEEL FILTER 120MM FAN FILTER/SCREEN STEEL 120MM Filter; 06 Series; 4-1/2 in. Fan; Stainless Steel; 4.68 in. H x 0.175 in. W Fan Accessories STEEL FILTER 120MM EMI/RFI Fan Filter Filter;06Series;4-1/2in.Fan;StainlessSteel;4.68in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 120 mm - 4 1/2 in. Use With Fan Size (in.): 4.5 Finish: Stainless Steel Sixz (inches) H (sq): 4.68 Size (inches) Thickness: 0.175 M/C: 4.125 |
| 分类 |
商业参数
| 产品 | Fan Accessories | 交货时间 | 112 Days |
| 子类别 | Thermal Management Accessories | 产品类别 | Fan Cords & Accessories |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85339000 |
机械参数

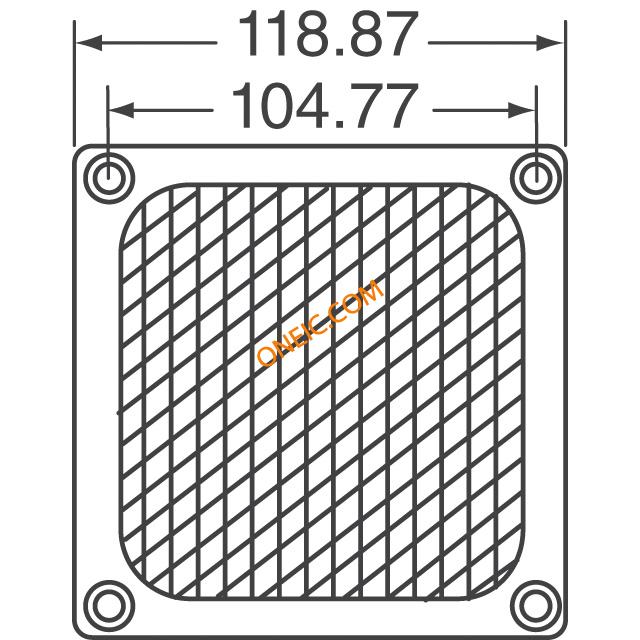

| 颜色 | Natural | 长度 | 118.87 mm |
| 重量 | 0.036 | 风扇类型 | :120mm |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Bulk |
| 基体材料 | :Stainless Steel | 适配风扇尺寸 | 120 mm |
| 屏蔽材料 | :Stainless Steel | 风扇附件类型 | Filter/Screen |
| 安装孔间距 | :104.8mm | ||
产品信息
| 类型 | Filter Screen | 产品特性 | Washable in solvent or degreaser |
| 附件类型 | :EMI / RFI Fan Filter | 适用产品/相关产品 | :Qualtek 120mm Axial Fans |
文档与媒体
相关型号

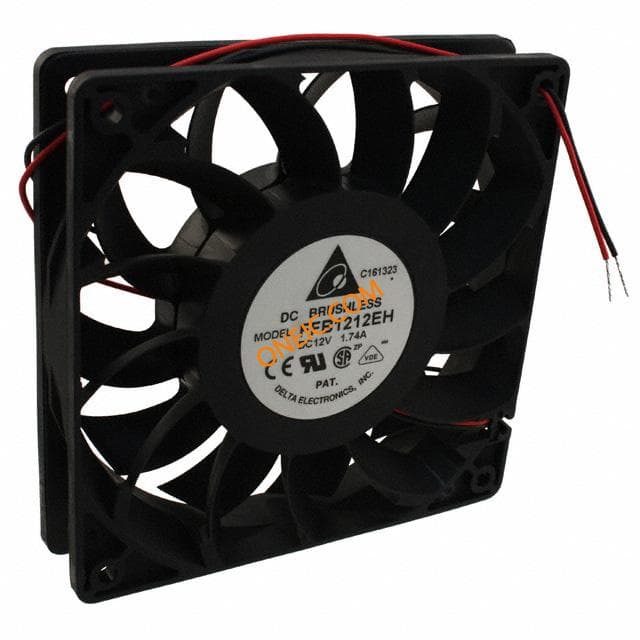

FFB1212EH
Delta Electronics
DC Fan Ball Bearing 12V 0.63A 17.4W 4000RPM 150.33CFM 56.4dB Flange Mount 12V DC FAN 120X120X25.4 MM
FFB1212EH
Delta Electronics, Inc.
12V DC FAN 120X120X25.4 MM DC Fan Ball Bearing 12V 0.63A 17.4W 4000RPM 150.33CFM 56.4dB Flange Mount

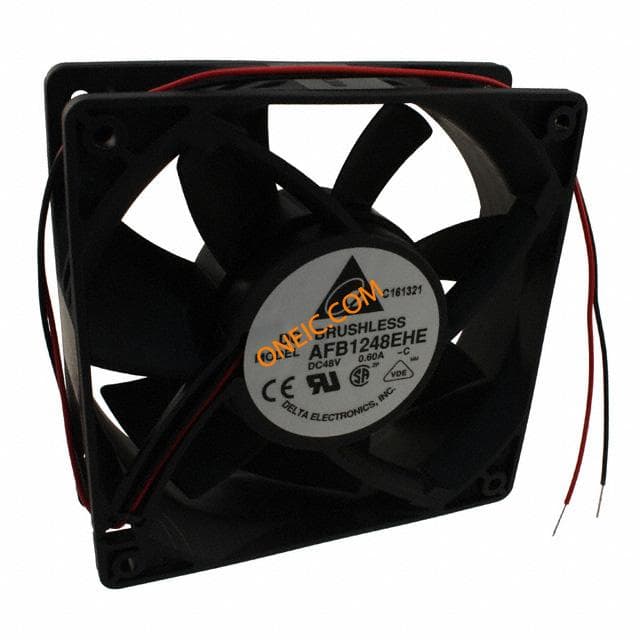

AFB1248EHE-C
Delta Electronics, Inc.
48V DC FAN 120X120X38 MM

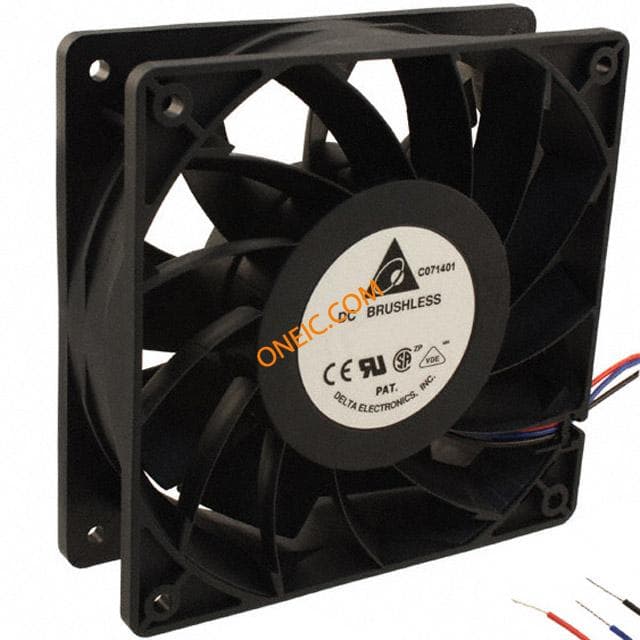

FFB1248SHE-R00
Delta Electronics, Inc.
48V DC FAN 120X120X38 MM DC Fan Ball Bearing 48V 0.38A 18.24W 3600RPM 170.92CFM 56.5dB Flange Mount

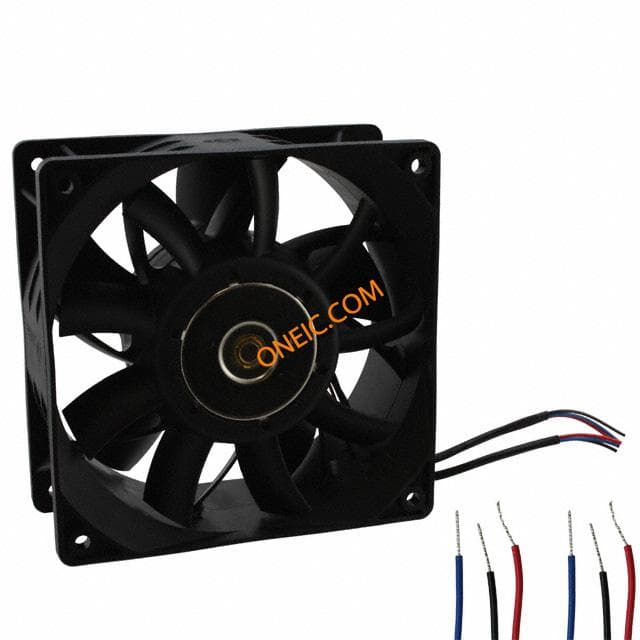

GFB1224SHG-F00
