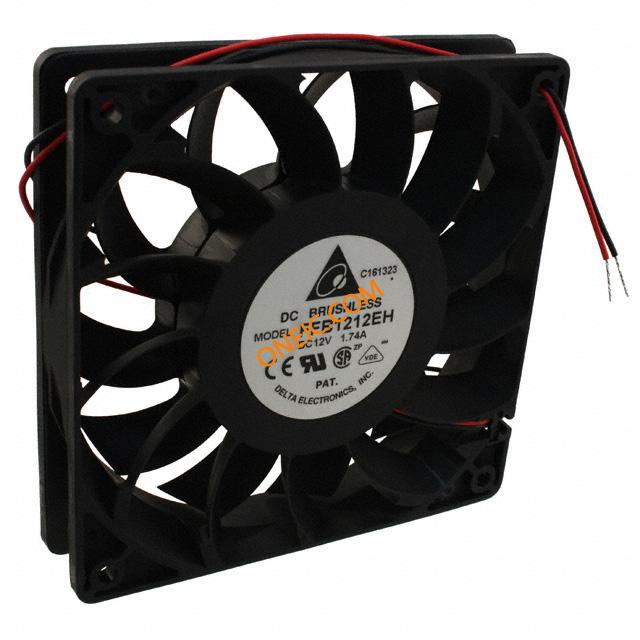

FFB1212EH

制造商	Delta Electronics, Inc.
描述	DC Fan Ball Bearing 12V 0.63A 17.4W 4000RPM 150.33CFM 56.4dB Flange Mount 12V DC FAN 120X120X25.4 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

其他名称

603-1434

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

噪声	56.4 dB(A)	转速	Clockwise
输入范围	7 to 13.2	功率（瓦）	17.4W
额定功率	17.4	电压范围	7 ~ 13.2VDC
额定电压	12VDC	输出电流	0.63
最大额定电流	1.45A

机械参数

RPM	4000 RPM	深度	120
高度	25.4	重量	0.452 lb (205.02g)
风量	150.3 CFM (4.26m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Ball
安装类型	Flange Mount	静压	0.489 in H2O (121.9 Pa)
壳体材料	Plastic	总长度	120
刀片材料	Plastic	框架材料	Plastic
最大压力	0.489inH2O	尺寸/外形	Square - 120mm L x 120mm H x 25.4mm W

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 140°F (-10 ~ 60°C)

文档与媒体

PDF 文档

FFB 120x120x25.4MM
