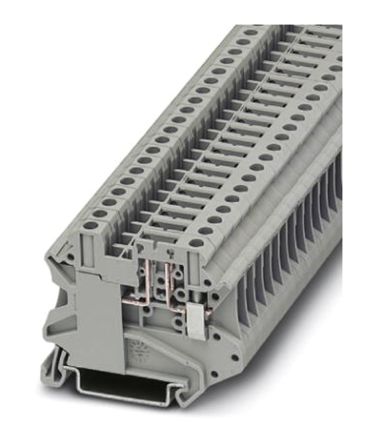

3070037
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UT 4-PE/TG P/P Conn Feed-Through Modular Terminal Blocks F 2 POS Screw 20A TERM BLOCK UT4-PE/TGP/P Disconnect Terminal Block |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UT 4-PE/TG P/P |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - IEC | 20A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 20 A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 55 |
| 长度 | 57.8 mm | 导线线规 | 26 |
| 端接方式 | Screw | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 70.8 | 剥线长度（范围） | 9mm |
| 端子宽度 | 6.2mm | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 3 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.14-6mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | UT | 断开类型 | Open |
| 层数 | 2; 1 Grounded | ||
文档与媒体
相关型号
3032224
Phoenix Contact
Terminal Block Tools & Accessories FBS 50-6 Conn Jumper M 50 POS ST BRIDGE TERM BLOCK 50POS Cross connector/jumper for modular terminal block FBS 50-6 Bridge;TermBlk;Plug-inBridge;50;red Plug-in Bridge; 50 positions red
1207682
Phoenix Contact
Mounting Hardware NS 35/15 PERF 955MM NS 35 DIN Rail, Perforated, Height 15mm, Length 955mm DIN RAIL 35MMX15MM SLOTTED 37.6" DIN rail,perforated,steel,35x15x955mm NS35/15PERF955MM
1207679
Phoenix Contact
Mounting Hardware NS 35/15 PERF 755MM Ns 35 Din Rail, Perforated, Height 15 Mm, Length 755 Mm DIN RAIL 35MMX15MM SLOTTED 29.7" DIN rail,perforated,steel,35x15x755mm NS35/15PERF755MM
3036806
Phoenix Contact
ターミナルブロック・ツールとアクセサリ P-FU 5 X 20 FUNCTION PLUG-DISCON Fuse Plug FUSE PLUG BLACK 5X20MM Phoenix Contact 3036806 Fuse Plug Terminal Block, Series: P-FU Terminal Block Tools & Accessories P-FU 5 X 20 FUNCTION PLUG-DISCON Conn;TermBlk;FusePlug;Black;6.3A;500V;FuseType:G/5x20,Glass Phoenix Contact P-FU 系列 熔丝插头

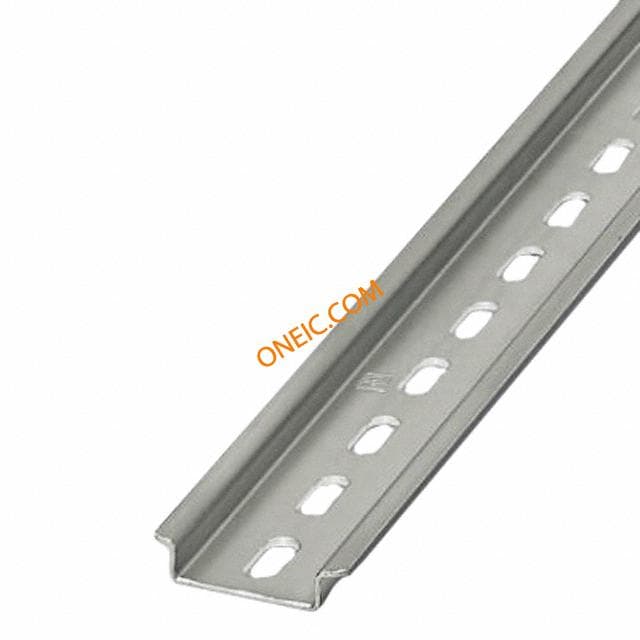

1207640
Phoenix Contact
取り付け用金具類 NS 35/ 7.5 PERF 755MM Connector Accessories Ns 35 DIN Rail Straight Steel Silver DIN RAIL 35X7.5MM SLOTTED 29.7" DIN rail,perforated,steel,35x7.5x755mm Mounting Hardware NS 35/ 7.5 PERF 755MM DinRail,NS35,Height:7.5mm,length:755mm DIN 导轨 顶帽式, NS35 穿孔型, 755mm x 35mm x 7.5mm
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公
1207695
Phoenix Contact
Terminal Block Tools & Accessories NS 35/15 PERF 1155MM NS 35 DIN Rail, Perforated, Height 15mm, Length 1155mm DIN RAIL 35MMX15MM SLOTTED 45.5" DIN rail,perforated,steel,35x15x1155mm NS35/15PERF1155MM DIN 导轨 顶帽式, NS35 穿孔型, 1155mm x 35mm x 15mm
3036819
Phoenix Contact
Terminal Block Tools & Accessories P-FU 5 X 20 LED 24 FUNCTION PLUG-DISCON Fuse Plug FUSE PLUG BLACK 5X20MM Conn;TermBlk;FusePlug;Black;6.3A;500V;FuseType:G/5x20,Glass Phoenix Contact P-FU 系列 熔丝插头
3030365
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-6 20 P0S BRIDGE Conn Jumper PL 20 POS ST BRIDGE TERM BLOCK 20POS Cross connector/jumper for modular terminal block FBS 20-6 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 20-6 系列 20 极跳片
3030349
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-6 5 POS BRIDGE Connector Accessories Plug-in Bridge For Cross-Connections In The Terminal Center BRIDGE TERM BLOCK 5POS Phoenix Contact 3030349 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 5-6 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 5 极跳片
3030336
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-6 2P PLUG-IN BRIDGE Conn Jumper PL 2 POS ST BRIDGE TERM BLOCK 2POS Phoenix Contact 3030336 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. FBS 2-6

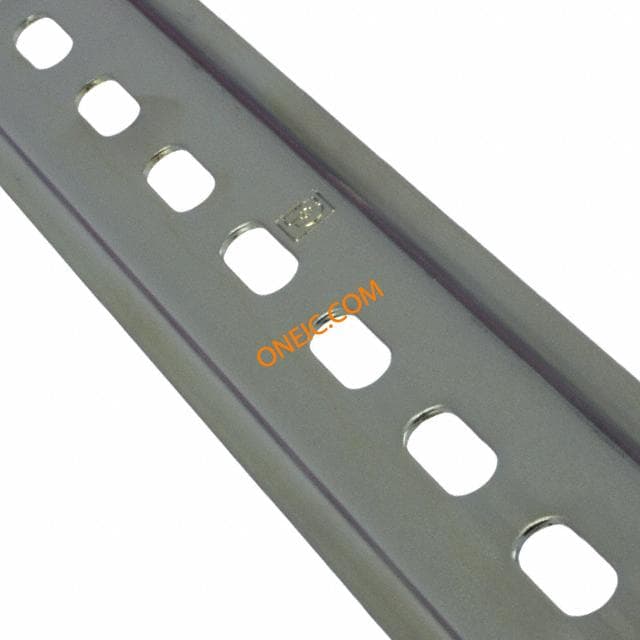

1207653
Phoenix Contact
Terminal Block Tools & Accessories NS 35/7.5 PERF 955MM Misc Products DIN RAIL 35X7.5MM SLOTTED 37.6" DIN rail,perforated,steel,35x7.5x955mm NS35/7.5PERF955MM
3030996
Phoenix Contact
Terminal Block Tools & Accessories PS-6 MODULAR TEST PLUG Conn Test Plug PL ST TEST ADAPTOR RED Phoenix Contact 3030996 Test Adapter Terminal Block, Series: PS TESTADAPTER,COLOR:RED Phoenix Contact PS 系列 测试适配器
3022276
Phoenix Contact
Terminal Block Tools & Accessories CLIPFIX 35-5 Connector Accessories End Clamp Polyamide Gray END BRACKET TERM BLOCK SNAP ON Phoenix Contact 3022276 End Bracket Terminal Block, Series: CLIPFIX END CLAMP, DIN RAIL MOUNT EndBracket;TermBlk;SnapOn;35mmH;48.5mmL;5.5mmW Holder Phoenix Contact CLIPFIX 系列 端子架
3030271
Phoenix Contact
Terminal Block Tools & Accessories FBS 10-6 BRIDGE Conn Jumper M 10 POS Solder ST Thru-Hole BRIDGE TERM BLOCK 10POS Busbar Plug In Bridge Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:6mm 10 way x 6mm plug in bridge,red

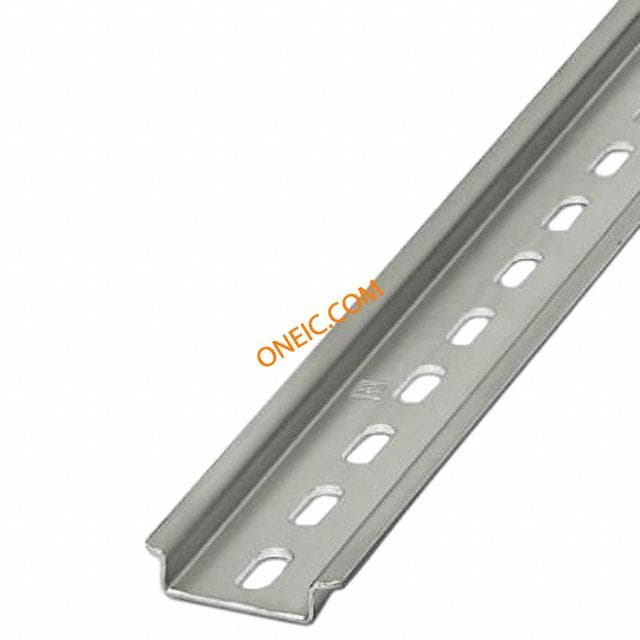

1207666
