1207682
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Mounting Hardware NS 35/15 PERF 955MM NS 35 DIN Rail, Perforated, Height 15mm, Length 955mm DIN RAIL 35MMX15MM SLOTTED 37.6" DIN rail,perforated,steel,35x15x955mm NS35/15PERF955MM |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Mounting Rails | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 漏极类型 | NS35 Perforated | ||
机械参数
| 尺寸 | 1.378" W x 0.591" H (35.00mm x 15.00mm) | 颜色 | Silver |
| 宽度 | 35 mm | 高度 | 15mm |
| 长度 | 955 mm | 重量 | 1.334 lbs |
| 镀层 | Galvanized | 材料（通用） | Steel |
| 厚度 | 0.059" (1.50mm) | 开槽/无槽 | Slotted |
产品信息
| 类型 | DIN Rail | 兼容性 | Top Hat |
相关型号

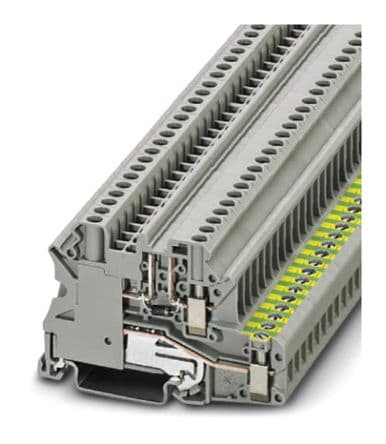

3046834
