点击放大查看

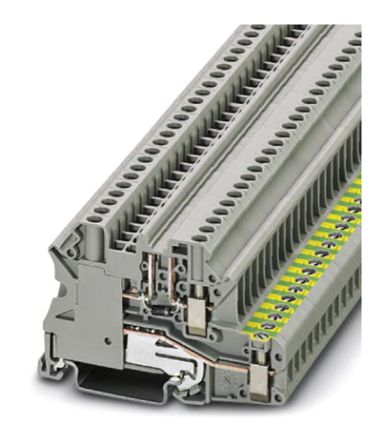

3046834
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UT 4-PE/L-DIO L/R COMPONENT TERMINAL BLOCK CONNECTION METHODSCREW CONNECTION CROSS SECTION 0 TERM BLOCK UT4-PE/L-DIO/L-RP/P Component Terminal Block |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UT 4-PE/L-DIO/L-R P/P |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 0.5A | UL电压 | 600V |
| 电流 - IEC | 0.5A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 0.5A |
机械参数
| 颜色 | Gray | 宽度 | 6.2 mm |
| 导线线规 | 26 | 安装样式 | DIN Rail |
| 剥线长度（范围） | 9mm | 端子宽度 | 6.2mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 位数 | 3 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.14-6mm² |
产品信息
| 类型 | Feed Through, Isolated | 系列 | UT |
| 产品特性 | Diode | 层数 | 2; 1 Grounded |
文档与媒体
相关型号
1207682
Phoenix Contact
Mounting Hardware NS 35/15 PERF 955MM NS 35 DIN Rail, Perforated, Height 15mm, Length 955mm DIN RAIL 35MMX15MM SLOTTED 37.6" DIN rail,perforated,steel,35x15x955mm NS35/15PERF955MM
1207679
Phoenix Contact
Mounting Hardware NS 35/15 PERF 755MM Ns 35 Din Rail, Perforated, Height 15 Mm, Length 755 Mm DIN RAIL 35MMX15MM SLOTTED 29.7" DIN rail,perforated,steel,35x15x755mm NS35/15PERF755MM
1051003
Phoenix Contact
Terminal Block Tools & Accessories 6.2mm BLANK STRIPS OF TEN MARKERS EACH Single Covers, Color Transparent CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1051003 Marker Strip Terminal Block, Series: ZB ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;6.2mm;Blank;White Marker; Width:6mm; for labelling by user Phoenix Contact ZB 系列 标记条
1207640
Phoenix Contact
取り付け用金具類 NS 35/ 7.5 PERF 755MM Connector Accessories Ns 35 DIN Rail Straight Steel Silver DIN RAIL 35X7.5MM SLOTTED 29.7" DIN rail,perforated,steel,35x7.5x755mm Mounting Hardware NS 35/ 7.5 PERF 755MM DinRail,NS35,Height:7.5mm,length:755mm DIN 导轨 顶帽式, NS35 穿孔型, 755mm x 35mm x 7.5mm
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公

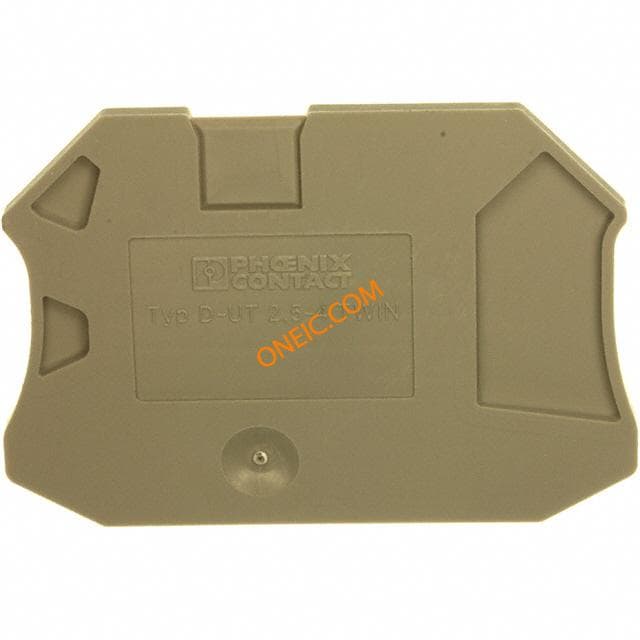

3047141
