1862632
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks IMC 1.5/ 8-G-3.81 Conn Wire to Board HDR 8 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 3.81MM Header for PCB plug connector IMC 1,5/ 8-G-3,81 IMC15/8-G-381 Phoenix Contact COMBICON IMC 系列 3.81mm节距 8路 印刷电路板接线端子块, 焊接端接, 8A |
| 分类 |
商业参数
| 产品 | Headers - Inverted | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | ||
机械参数
| 颜色 | Green | 深度 | 14.5 |
| 间距 | 0.150" (3.81mm) | 高度 | 6.85 |
| 重量 | 4.268149 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | 锡 |
| 壳体材料 | Polyamide | 总长度 | 31.27 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 8 |
| 位数 | 8 | 接线端子类型 | Header, Female Sockets |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | IMC | 层数 | 1 |
| 每层位数 | 8 | ||
文档与媒体
相关型号
1830017
Phoenix Contact
Pluggable Terminal Blocks MCD 1.5/ 8-G-3.81 Conn Wire to Board HDR 16 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 8-G-3,81 MCD15/8-G-381 Phoenix Contact COMBICON MCD 系列 8路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
1860702
Phoenix Contact
プラグ着脱可能ターミナルブロック EMCV 1.5/ 8-G-3.81 Conn Wire to Board HDR 8 POS 3.81mm Press Fit ST Thru-Hole TERM BLOCK HDR 8POS VERT 3.81MM Header for PCB plug connector EMCV 1,5/ 8-G-3,81 Pluggable Terminal Blocks EMCV 1.5/ 8-G-3.81 EMCV15/8-G-381 Phoenix Contact COMBICON EMCV 系列 3.81mm节距 8路 印刷电路板接线端子块, 按式端接, 8A

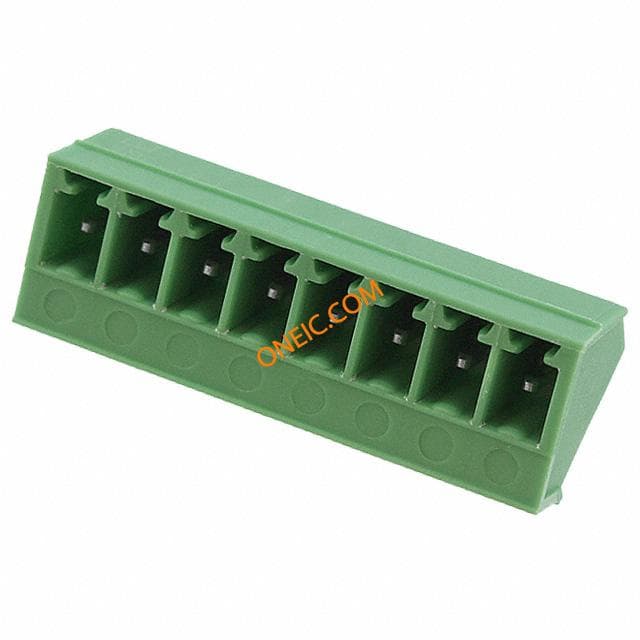

1827334
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P HEADER 45DEG Conn Shrouded Header HDR 8 POS 3.81mm Solder Thru-Hole TERM BLOCK HDR 8POS 45DEG 3.81MM Header for PCB plug connector SMC 1,5/ 8-G-3,81 Header;BaseStrip;8A;160V;8Pos.;Green;Solder;SMC1,5/8-G-3,81

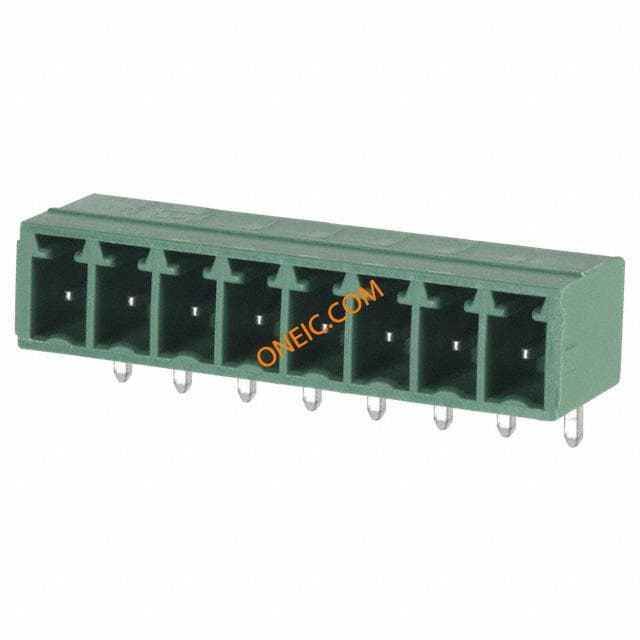

1803332
Phoenix Contact
Pluggable Terminal Blocks 3.81 8P HEADER 90DEG Conn Shrouded Header HDR 8 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 3.81MM Phoenix Contact MC Series 3.81mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 8A Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MC 系列 3.81mm节距 8路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A , 通孔

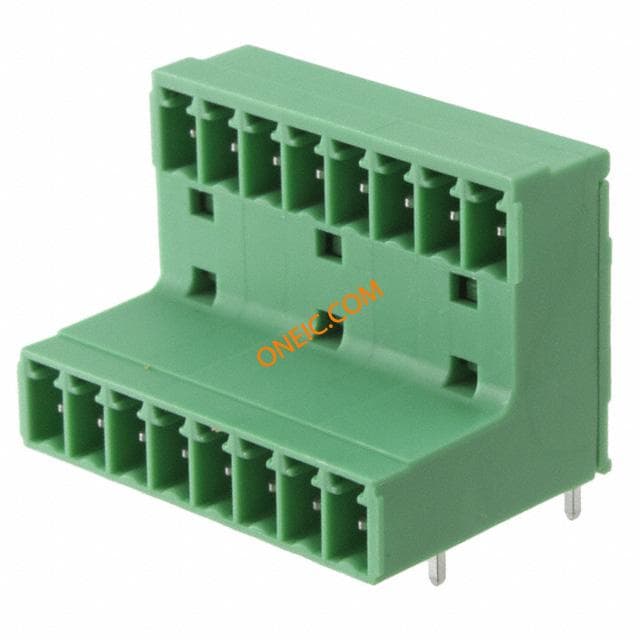

1843130
Phoenix Contact
Pluggable Terminal Blocks 3.81mm 8P HDR DBL LV Conn Wire to Board HDR 16 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 8-G1-3,81 MCD15/8-G1-381 Phoenix Contact COMBICON MCD 系列 8路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A

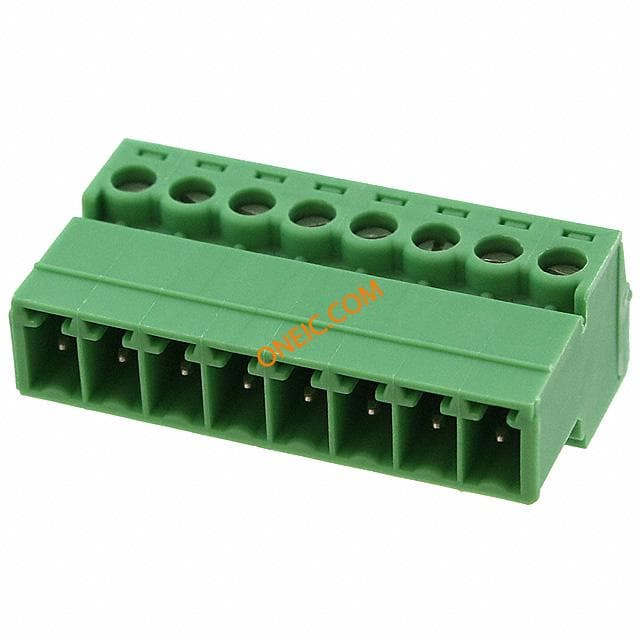

1857948
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/ 8-ST-3 81 Conn Terminal Block F 8 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 8POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 8-ST-3,81 PLUGCOMPONENT,PITCH:3.81MM,POS8

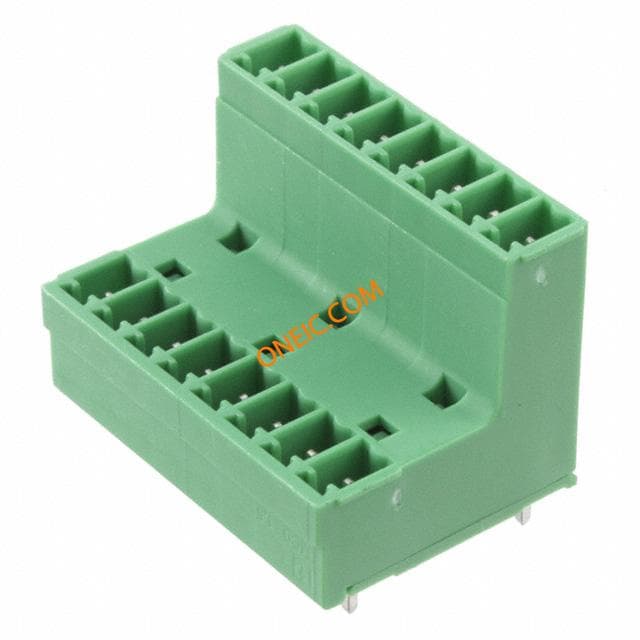

1830460
Phoenix Contact
Pluggable Terminal Blocks MCDV 1 5/ 8-G-3 81 Conn Shrouded Header HDR 16 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 16POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/ 8-G-3,81 Header;BaseStrip;8A;160V;8Pos.;Green;Solder;MCDV1.5/8-G-3,81

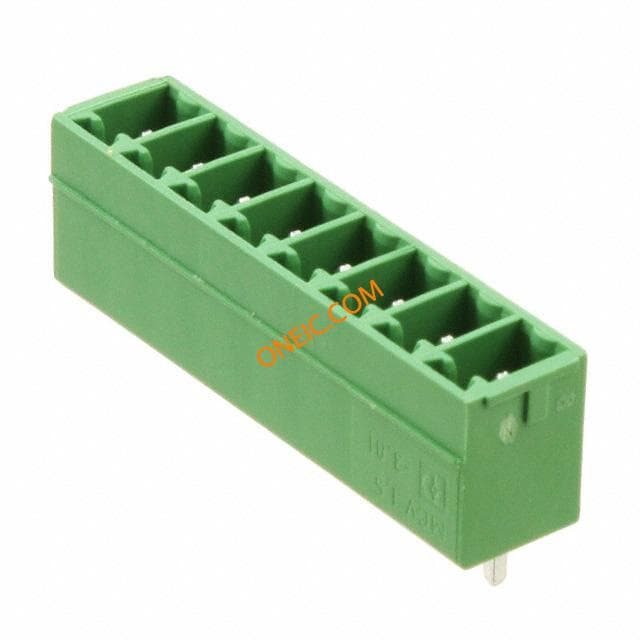

1803484
