点击放大查看
1772939
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Terminal Block Tools & Accessories HC-KA-B 10-BU/PER Conn Terminal Block 10 POS Screw Cable Mount 16A HEAVYCON TERM ADAPTER 10POS Contact insert HC-KA-B 10-BU/PER HEAVYCON terminal adapter female insert, B10 series, 10. pos., protective conductor connection on the right for the left side of ... HEAVYCON terminal adapter female insert, B10 series, 10. pos., protective conductor connection on the right for the left side of the control cabinet, screw connection; contact inserts with screw, crimp, and QUICKON connections usable as mating connectors. TERMINALADAPTERFEMALEINSERT,10POS. |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 400V | ||
机械参数
| 尺寸 | B10 | 深度 | 79 |
| 高度 | 61.5 | 包装方式 | Bulk |
| 导线线规 | 12-22 | 端接方式 | Screw |
| 安装类型 | Cable Mount | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide/Polycarbonate |
| 总长度 | 64 | 端接样式 | Terminal Block, Straight - Screw |
| 触点数 | 10 | 位数 | 10 |
产品信息
| 类型 | Terminal Block | 连接器性别 | Female |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1772890
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-B 10-ST/PER Conn HEAVYCON Adapter Insert F/F 20/20 POS Panel Mount TERMINAL ADAPT MALE INSERT 10POS Contact insert HC-KA-B 10-ST/PER HC-KA-B10-ST/PER
1775240
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-FE Foot Element, For Mounting On Mounting Rail NS 32, Mounting Rail NS 35/7.5 Or Mounting Rail FOOT ELEMENT DIN RAIL Foot element for mounting terminal adapters on DIN rails HC-KA-FE FOOTELEMENT
1771338
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10-AML Connector Accessories HEAVYCON Panel Mounting Base Aluminum Die Cast Powder Coated Gray PANEL MOUNTING BASE B10 Connector Panel Mtg Base +Latch B10 Housing for heavy-duty plug connectors HC-B 10-AML Heavy Duty Power Connectors HC-B 10-AML PANELMOUNTINGBASEB10,27MM Phoenix Contact B10 系列 电源连接器外壳 , 面板安装
1771325
Phoenix Contact
Heavy Duty Power Connectors HC-B 10-AMQ Heavy Connector Panel Mounting Base B10 With Double Locking Latch HEAVYCON MOUNTING BASE B10 Housing for heavy-duty plug connectors HC-B 10-AMQ PANELMOUNTINGBASEB10,27MM

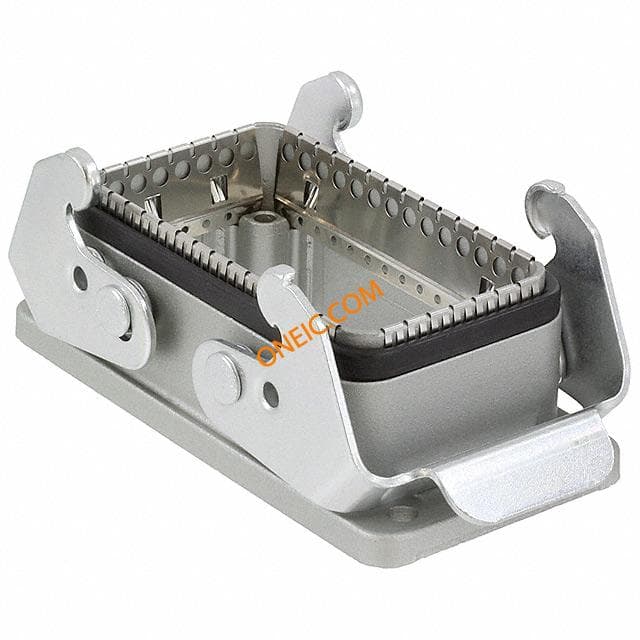

1642522
