点击放大查看
1772890
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Terminal Block Tools & Accessories HC-KA-B 10-ST/PER Conn HEAVYCON Adapter Insert F/F 20/20 POS Panel Mount TERMINAL ADAPT MALE INSERT 10POS Contact insert HC-KA-B 10-ST/PER HC-KA-B10-ST/PER |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 交货时间 | 40 Days |
| 子类别 | Connector Rectangular | 产品类别 | Terminal Block Tools & Accessories |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 400V | ||
机械参数
| 尺寸 | B10 | 深度 | 79 |
| 材料（通用） | Polyamide / Polycarbonate | 包装方式 | Bulk |
| 安装类型 | Panel Mount | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide/Polycarbonate |
| 总长度 | 64 | 端接样式 | Screw |
| 第一触头极性 | F/F | 触点数 | 20/20 |
| 位数 | 10 | ||
产品信息
| 类型 | Terminal Adapter, male insert | 连接器性别 | Male |
| 行业别名 | HC-KA-B 10-ST/PER | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -40°C ~ 125°C |
相关型号
1690118
Phoenix Contact
Heavy Duty Power Connectors HC-B10-TMS-100/ 01STM32G-EUA HEAVYCON Advance For Increased Environmental Requirements, Sleeve Housing B10, With Screw Locking SLEEVE HOUSING B10 100 MM HC-B10-TMS-100/O1STM32G-EUA Phoenix Contact 连接器外壳
1604781
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B10-TMQ-52/01M25S HEAVYCON Sleeve Housing B10, With Double Locking Latch, Height 52 HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 10-TMQ-52/O1M25S Heavy Duty Power Connectors HC-B10-TMQ-52/01M25S HEAVYCONsleevehousingB10

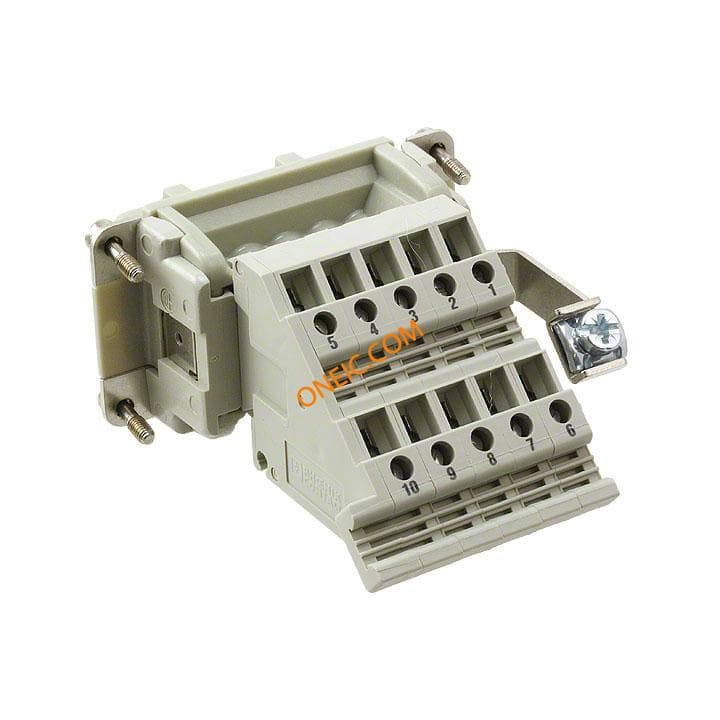

1772939
