点击放大查看

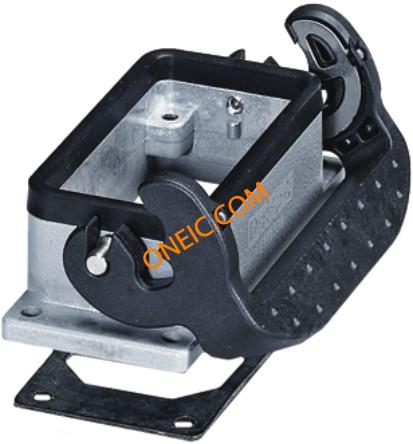

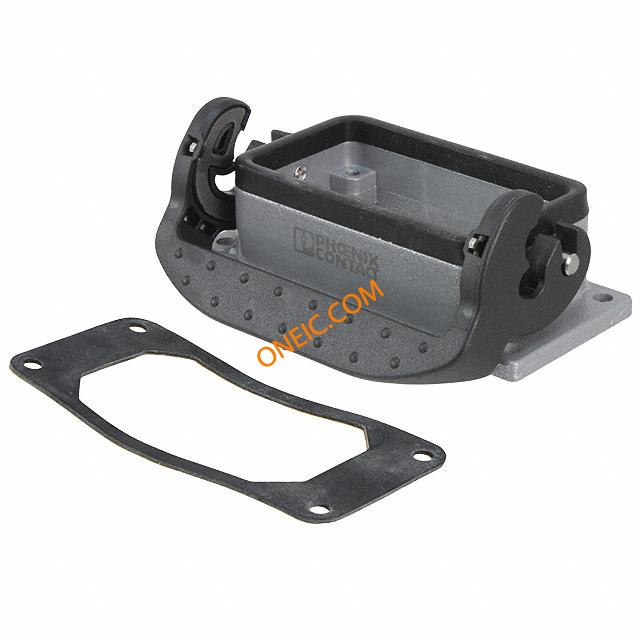

1771338
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-B 10-AML Connector Accessories HEAVYCON Panel Mounting Base Aluminum Die Cast Powder Coated Gray PANEL MOUNTING BASE B10 Connector Panel Mtg Base +Latch B10 Housing for heavy-duty plug connectors HC-B 10-AML Heavy Duty Power Connectors HC-B 10-AML PANELMOUNTINGBASEB10,27MM Phoenix Contact B10 系列 电源连接器外壳 , 面板安装 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Accessories | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B10 | 深度 | 43 |
| 高度 | 29 | 重量 | 3.589126 oz |
| 包装方式 | Bulk | 外壳颜色 | Gray |
| 安装类型 | 面板安装 | 连接器类型 | Base - Panel Mount |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 总长度 | 93 | 尺寸/外形 | 3.661" L x 1.693" W x 1.063" H (93.00mm x 43.00mm x 27.00mm) |
产品信息
| 类型 | HEAVYCON Panel Mounting Base | 样式 | Bottom Entry |
| 系列 | Heavycon | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Base Bottom |
| 附件类型 | Panel Mount Base | 行业别名 | HC-B 10-AML |
| 适用产品/相关产品 | Contact Insert | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
