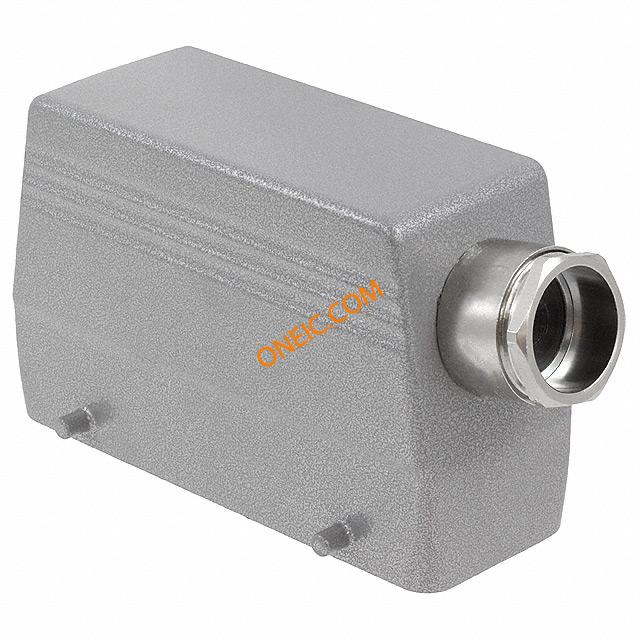

点击放大查看
1771778
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-B 24-TFQ-76/M1P Connector Accessories Sleeve Housing SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-TFQ-76/M1PG29S Heavy Duty Power Connectors HC-B 24-TFQ-76/M1P Housing;DoubleLockingLatch;76mm(H);Lat.CableOut.;HC-B24-TFQ-76/M1PG29S |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Accessories | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B24 | 深度 | 2.2 |
| 高度 | 76 | 重量 | 14.124753 oz |
| 包装方式 | Bulk | 螺纹尺寸 | PG29 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 总长度 | 120 | 尺寸/外形 | 4.724" L x 1.771" W x 2.992" H (120.00mm x 45.00mm x 76.00mm) |
| 端接样式 | Screw | ||
产品信息
| 类型 | Sleeve Housing | 样式 | Side Entry |
| 系列 | Heavycon | 产品子类型 | Housings |
| 锁定位置 | Locking Clip on Base Bottom | 行业别名 | HC-B 24-TFQ-76/M1PG29S |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
