点击放大查看
1678978
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-QA-B 16-ST/PER Conn HEAVYCON Adapter Insert F/F 32/32 POS Panel Mount TERM ADAPTER MALE 16POS PUSHIN INSERT MALE 16POS TERMINAL BLOCK |
| 分类 |
商业参数
| 交货时间 | 14 Days | 商标名 | HEAVYCON |
| 其他名称 | HC-QA-B 16-ST/PER | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 230V/400V | ||
机械参数
| 尺寸 | B16 | 深度 | 114.9 |
| 高度 | 59 | 重量 | 6.569070 oz |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide/Polycarbonate | 总长度 | 84.5 |
| 端接样式 | Terminal Block, Straight - Push In | 第一触头极性 | F/F |
| 触点数 | 32/32 | 位数 | 16 |
产品信息
| 类型 | HEAVYCON Adapter Insert | 连接器性别 | Male |
| 系列 | HC-QA | 产品子类型 | Inserts |
| 行业别名 | HC-QA-B 16-ST/PER | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1605200
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-AMQ-A Heavycon Panel Mounting Base B16, With Double Locking Latch,Height 27 Mm PANEL MNT BASE B16 W/DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 16-AMQ-A HEAVYCON panel mounting base B16, with double locking latch, height 27 mm HC-B16-AMQ-A
1646299
Phoenix Contact
Circular Metric Connectors HC-B 16-SML-84/ O1M32 Heavycon Box Mounting Base B16, With Single Locking Latch, Height84 Mm, With Support 1Xm32 HEAVYCON BOX MOUNTING BASE B16 Housing for heavy-duty plug connectors HC-B 16-SML-84/O1M32 HC-B16-SML-84/O1M32
1771639
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-SMQ-67/ M2PG21 Box Mounting Base, With Double Locking Latch, Height 67 Mm, With Screw Connection, 2X Pg21 BOX MOUNTING BASE 67 MM Housing for heavy-duty plug connectors HC-B 16-SMQ-67/M2PG21 Heavy Duty Power Connectors HC-B 16-SMQ-67/ M2PG21 HC-B16-SMQ-67/M2PG21 Phoenix Contact HC-B 系列 连接器外壳 , PG21螺纹
1775240
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-FE Foot Element, For Mounting On Mounting Rail NS 32, Mounting Rail NS 35/7.5 Or Mounting Rail FOOT ELEMENT DIN RAIL Foot element for mounting terminal adapters on DIN rails HC-KA-FE FOOTELEMENT
1771587
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-AMQ HEAVYCON Panel Mounting Base B16 PANEL MOUNTING BASE B16 Housing for heavy-duty plug connectors HC-B 16-AMQ PANELMOUNTINGBASEB16,27MM
1604784
Phoenix Contact
ヘビーデューティパワーコネクタ hc-b 16-smL 67/01M25 Heavycon Box Mounting Base B16, With Single Locking Latch, Height HEAVYCON BOX MOUNTING BASE B16 Housing for heavy-duty plug connectors HC-B 16-SML-67/O1M25 Heavy Duty Power Connectors hc-b 16-smL 67/01M25 HC-B16-SML-67/O1M25
1604788
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-SMQ-67/01M25 Heavycon Box Mounting Base B16, With Double Locking Latch, Height BOX MNT BASE B16 W/DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 16-SMQ-67/O1M25 HC-B16-SMQ-67/O1M25 Connector Housing
1584622
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-AFZ Connector Accessories Panel Mounting Base PANEL MOUNTING BASE B16 Heavy Duty Power Connectors HC-B 16-AFZ Connector Accessories Panel Mounting Base Aluminum Die Cast With Single Locking Latch With Plastic Cover With Flat Gasket HC-B16-AFZ

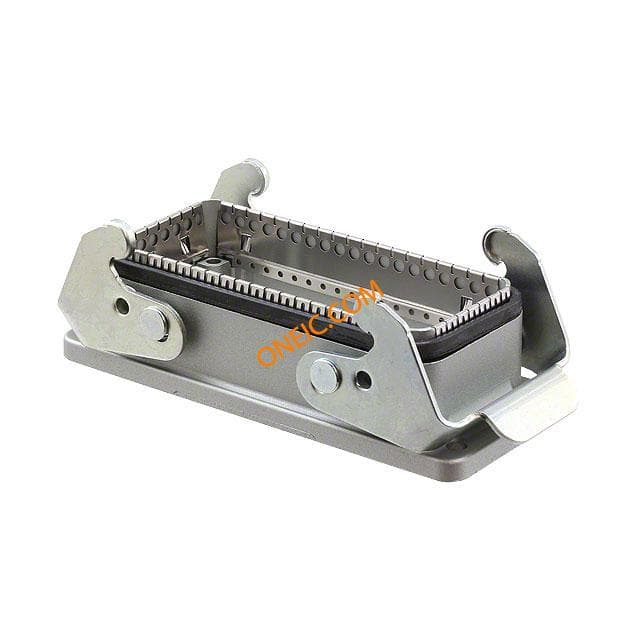

1642742
