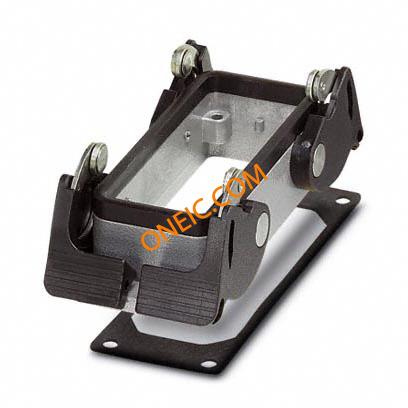

点击放大查看
1771587
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B 16-AMQ HEAVYCON Panel Mounting Base B16 PANEL MOUNTING BASE B16 Housing for heavy-duty plug connectors HC-B 16-AMQ PANELMOUNTINGBASEB16,27MM |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | HEAVYCON |
| 子类别 | Misc Products | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B16 | 重量 | 4.433584 oz |
| 包装方式 | Bulk | 外壳颜色 | Gray |
| 连接器类型 | Base - Panel Mount | 外壳涂层 | Powder Coated |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 4.488" L x 1.693" W x 1.063" H (114.00mm x 43.00mm x 27.00mm) |
产品信息
| 样式 | Bottom Entry | 系列 | Heavycon |
| 产品子类型 | Accessories | 锁定位置 | Locking Clip on Base Bottom |
| 行业别名 | 17 71 58 7, HC-B 16-AMQ | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
