点击放大查看

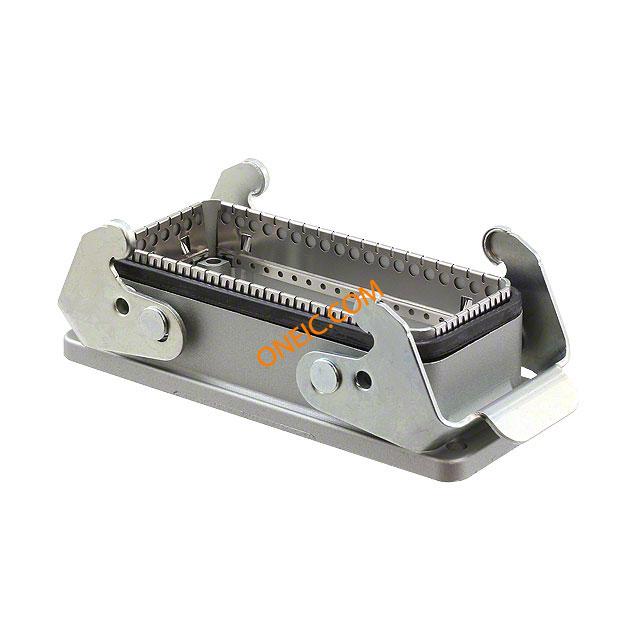

1642742
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B 16-AMQ-EMV HEAVYCON Panel Mounting Base B16, with Double Locking Latch PANEL MOUNT BASE B16 EMC housing for heavy-duty plug connectors HC-B 16-AMQ-EMV HC-B16-AMQ-EMV |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B16 | 重量 | 5.821967 oz |
| 包装方式 | Bulk | 外壳颜色 | Silver |
| 连接器类型 | Base - Panel Mount | 外壳涂层 | EMC Coating |
| 插入力 | Female | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 4.449" L x 1.890" W x 1.193" H (113.00mm x 48.00mm x 30.30mm) | ||
产品信息
| 样式 | Bottom Entry | 系列 | Heavycon |
| 产品子类型 | Housings | 锁定位置 | Locking Clip on Base Bottom |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 100°C |
