点击放大查看

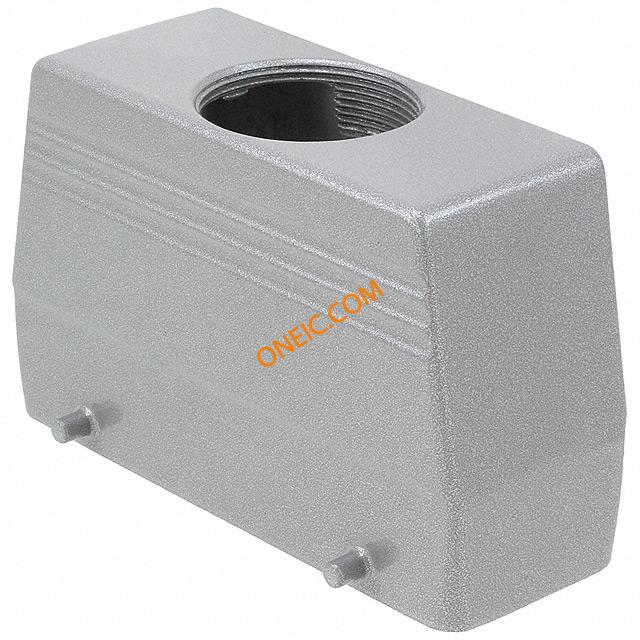

1644708
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B 24-TFQ-76/ O1STM40G HEAVYCON Sleeve Housing B24, For Double Locking Latch, Height 76mm, Without Support 1X M40, Straight Conductor Exit HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFQ-76/O1STM40G HEAVYCON sleeve housing B24, for double locking latch, height 76 mm, without support 1x M40, straight conductor exit HC-B24-TFQ-76/O1STM40G |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B24 | 重量 | 11.429822 oz |
| 包装方式 | Bulk | 螺纹尺寸 | M40 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 4.724" L x 1.771" W x 2.992" H (120.00mm x 45.00mm x 76.00mm) | 端接样式 | Cable |
| 触点数 | 1 | ||
产品信息
| 样式 | Top Entry | 系列 | Heavycon |
| 产品子类型 | Housings | 锁定位置 | Locking Clip on Base Bottom |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
文档与媒体
相关型号
1648474
Phoenix Contact
Heavy Duty Power Connectors HC-B 24-A-DT-PEL-F Conn HEAVYCON Adapter Insert F/F 48/48 POS Panel Mount TERM ADAPTER FMALE INSERT 24POS INSERT FEMALE 24POS TERM BLOCK HC-B24-A-DT-PEL-F
1690655
Phoenix Contact
Cable Mounting & Accessories HC-K-KV-M40 Cable Accessories Plastic Screw Connection Neoprene Silver Gray CABLE RELIEF 28MM Cable gland HC-K-KV-M40(19-28) Plastic screw connection up to 5 bar, thread length: 10 mm, cable diameter: 19 - 28 mm, WAF 46, screw ... Plastic screw connection up to 5 bar, thread length: 10 mm, cable diameter: 19 - 28 mm, WAF 46, screw connection: M40 HC-K-KV-M40(19-28) Phoenix Contact 电缆固定头
1690590
Phoenix Contact
Circular Metric Connectors HC-M-KV-M40 (19-27) Cable Accessories Metal Screw Connection Neoprene/Brass CABLE RELIEF 27MM Cable gland HC-M-KV-M40(19-27) Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 19 - 27 mm, WAF 43, screw ... Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 19 - 27 mm, WAF 43, screw connection: M40 CableGland;Metalscrewconnectionupto5bar;8mmthreadlength
1607729
Phoenix Contact
Circular Metric Connectors HC-M-KV-M40(27-34) Cable Accessories Metal Screw Connection Neoprene/Brass CABLE RELIEF 34MM Cable gland HC-M-KV-M40(27-34) Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 27 ... 34 mm, WAF 50, screw ... Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 27 ... 34 mm, WAF 50, screw connection: M40 METALSCREWCONNECTIONUPTO5BAR
1605640
Phoenix Contact
ヘビーデューティパワーコネクタ Male B24 24P IDC Conn HEAVYCON Insert M 24 POS ST Panel Mount HEAVYCON ML INSERT 24POS Contact insert HC-B 24-ESTQ-2,5 Heavy Duty Power Connectors Male B24 24P IDC HC-B24-ESTQ-25
1605666
Phoenix Contact
ヘビーデューティパワーコネクタ Male B24 24P IDC Numbered 25-48 Conn HEAVYCON Insert M 24 POS ST Panel Mount INSERT MAEL 24POS+1GND IDC Heavy Duty Power Connectors Male B24 24P IDC Numbered 25-48 INSERT MALE 24POS+1GND IDC HC-B24-ESTQ-25-48
1584143
Phoenix Contact
Heavy Duty Power Connectors Female DD108 108P 109-216 Print Crimp Conn Rectangular F 108 POS Crimp ST Panel Mount HEAVYCON FEMALE INSERT 108POS HC-DD108-I-CT-F-216
1648335
Phoenix Contact
ヘビーデューティパワーコネクタ Male B24 24P For Crimp Contacts Conn Rectangular M 24 POS Crimp ST Panel Mount MALE INSERT 24POS CRIMP CONTACTS Heavy Duty Power Connectors Male B24 24P For Crimp Contacts HC-B24-I-CT-M
1605255
Phoenix Contact
ヘビーデューティパワーコネクタ Male B24 24P 2 Spring-cage Cont. Conn HEAVYCON Insert M 24 POS ST Panel Mount INSERT MALE 24POS+1GND CLAMP Heavy Duty Power Connectors Male B24 24P 2 Spring-cage Cont. HC-B24-ESTZZ Phoenix Contact B24 系列 24P+E 公插 触点插件 , 额定电流 16A/ 500 V
1584295
Phoenix Contact
Heavy Duty Power Connectors HC-D64-A-UT-PEL-F HEAVYCON Terminal Adapter Female Insert TERM ADPT FEMALE INSERT 64-POS INSERT FEMALE 64POS SCREW HC-D64-A-UT-PEL-F Phoenix Contact 端子适配器
1648060
Phoenix Contact
Heavy Duty Power Connectors HC-B 24-A-UT-PEL-M Conn Terminal Block M 24 POS Screw 16A TERM ADAPTER MALE 24POS+1GND INSERT MALE 24P+1GND TERM BLOCK HC-B24-A-UT-PEL-M
1679333
Phoenix Contact
Heavy Duty Power Connectors Male K4/8 4 Power, 8 Control, Screw Conn HEAVYCON Insert M 4Power/8Signal POS Screw ST Panel Mount CONN MALE INSERT 4+8POS HEAVYCON Contact insert HC-K 4/8-ESTS HEAVYCONMALEINSERT4POWER8CONTROL
1772528
Phoenix Contact
Heavy Duty Power Connectors HC-D 64-ESTC Conn Terminal Block F 64 POS Crimp ST Panel Mount 10A MALE INSERT D64 CRIMP CONNECTION Contact insert HC-D 64-ESTC HC-D64-ESTC Phoenix Contact D64 系列 公

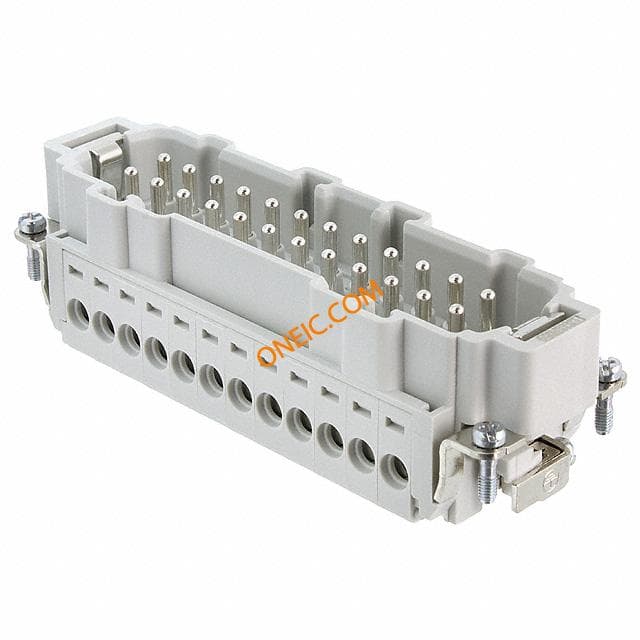

1648296
