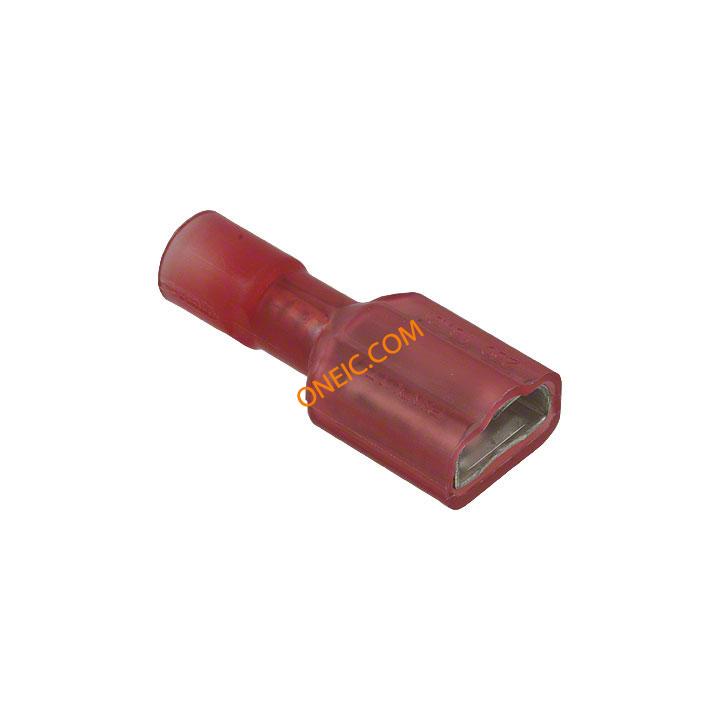

点击放大查看
DNF18-250FIB-C
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 21.3mm 8.9mm Tin Terminals U 644-DNF18-250FIB-M DISCONN FEMALE INS 22-18AWG .25" DISC; NYLON; FULLY-INSUL TERMINAL, FEMALE DISCONNECT, 0.25IN, RED Conn;CrimpTerminals;Disconnect;Female;22-18AWG;Nylon;Red;Tabsz.0.250 Female Disconnect, Nylon Fully Insulated, 22, 18 AWG, .250 x .032 Tab Size, Funnel Entry, Pack of 100 |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85444920 | ||
机械参数
| 颜色 | Orange | 深度 | 8.9 |
| 长度 | 118.11 in | 重量 | 0.113 |
| 镀层 | Tin | 包装方式 | Bulk |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 重量（g） | 126.00000 | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 1/40 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 行程角度 | Straight | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 总宽度 | 0.35" |
| 触头材料 | Brass | 绝缘颜色 | :Red |
| 总长度 | 0.840" (21.34mm) | 包装数量 | 100 |
| 主要材料 | QuickDisconnect | 端接样式 | Crimp |
| 绝缘直径 | 0.136" (3.45mm) | 绝缘材料 - 类型 | Nylon |
| 线规或范围 - AWG | :22AWG | ||
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | Female |
| 系列 | DNF18 | 产品特性 | Serrated Termination |
| 制造商全称 | DNF18Series | ||
