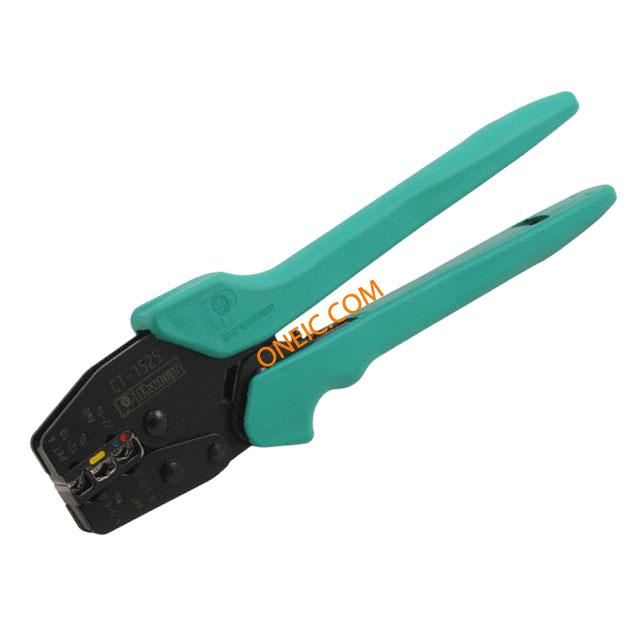

CT-1525
| 制造商 | Panduit Corp. |
| 描述 | Terminals, Ferrules, And Crimping Tools Crimpers 26-22 AWG CRIMP TL TOOL CRIMP FI DISC CONTROL-CYCLE CONTOUR CRIMPING TOOL FULLY INSULATED DISCONNECTS Crimp Tool, controlled cycle, crimps PAN CONTOURCRIMPINGTOOLFULLYINSULATEDDISCONNECTS Panduit® Terminal Crimp Tool, 26-22 AWG, Green Crimp Tool, For Panduit #26 To #22 AWG Insulated Terminals And Splices, #22 To #10 AWG Fully Insulated Disconnects And Insulated Parallel Splices And #22 To #14 AWG Barrel Insulated Disconnects, Steel Frame With Black Oxide Finish, Green |
| 分类 |
商业参数
| 产品 | Crimpers | 交货时间 | 14 Days |
| 子类别 | Assembly Tools | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 85411000 | ||
机械参数
| 颜色 | Green | 重量 | 1.610 lbs |
| 包装方式 | Bulk | 导线线规 | 26-10AWG |
| 驱动力 | Manual | 适用端子尺寸 | 26-22 AWG |
产品信息
| 类型 | Crimp Tool | 产品特性 | Side Entry |
| 工具类型 | Hand Crimper | 应用细节 | 26-10AWG |
| 适用产品/相关产品 | Splices and Terminals, 10-26 AWG | ||
