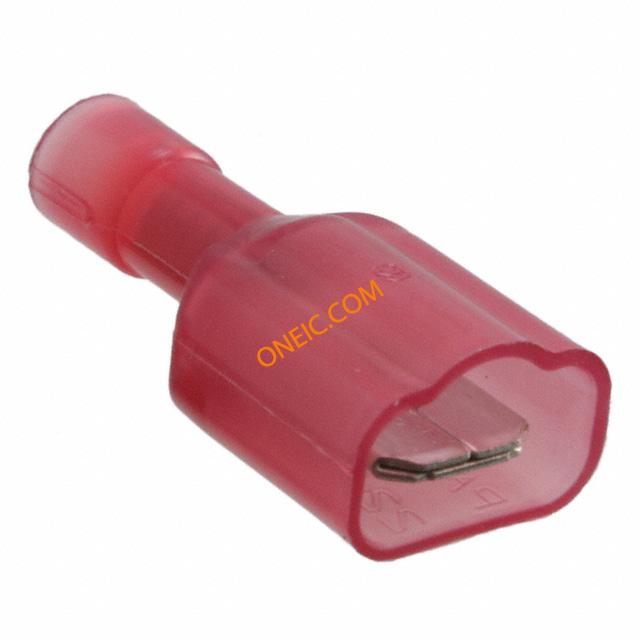

DNF18-250FIM-M
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 18-22AWG M 22.9mm 10.7mm Nickel Loose Piece Terminals MALE COUPLER 22-18 DISCONN MALE INS 22-18AWG .25" TERMINAL, MALE DISCONNECT, 0.25IN, RED DISC,MALE,NYLON,FULLY- Male Disconnect, nylon fully insulated, 22-18 AWG, .250 x .032 tab size, pack of 1000 |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 20 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 00000000 | ||
机械参数
| 颜色 | Red | 深度 | 10.7 |
| 长度 | .24 in | 重量 | 2.400 lbs |
| 镀层 | Nickel | 包装方式 | Bulk |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 1/4 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Male Disconnect | 接触镀层 | Nickel |
| 总宽度 | 0.42" | 触头材料 | Brass |
| 绝缘颜色 | :Red | 总长度 | 0.900" (22.86mm) |
| 包装数量 | :1000 | 主要材料 | QuickDisconnect |
| 端接样式 | Crimp | 绝缘直径 | 0.133" (3.38mm) |
| 绝缘材料 - 类型 | Nylon | 线规或范围 - AWG | :22AWG |
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | Male |
| 系列 | DNF | 产品特性 | Serrated Termination |
| 制造商全称 | DNF18Series | ||
