点击放大查看

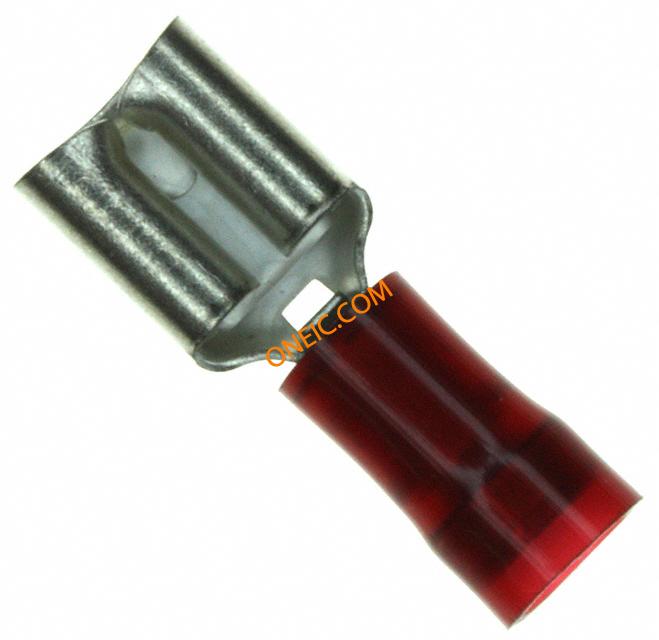

DNF18-250-M
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 20.57mm 17.37mm Tin Bulk Terminals FEMALE DISC. 22-18 DISC FEMALE NYLON 22-18 AWG .25" DISC,NYLON,BARRELINSUL. Female Disconnect, Nylon Barrel Insulated, #22 - #18 AWG, .250 x .032 Tab Size, Funnel Entry, Red, Pack of 1000 |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Red | 长度 | .39 in |
| 重量 | 2.700 lbs | 包装方式 | Bulk |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 1/4 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 行程角度 | Straight | 接触镀层 | Nickel |
| 总宽度 | 0.29" | 触头材料 | Copper |
| 总长度 | 0.810" (20.57mm) | 包装数量 | 1000 |
| 主要材料 | QuickDisconnect | 端接样式 | Crimp |
| 绝缘直径 | 0.138" (3.51mm) | 绝缘材料 - 类型 | Nylon |
产品信息
| 类型 | COPPER - OTHER | 连接器性别 | Female |
| 系列 | DNF | 产品特性 | Serrated Termination |
| 制造商全称 | DNF18Series | ||
