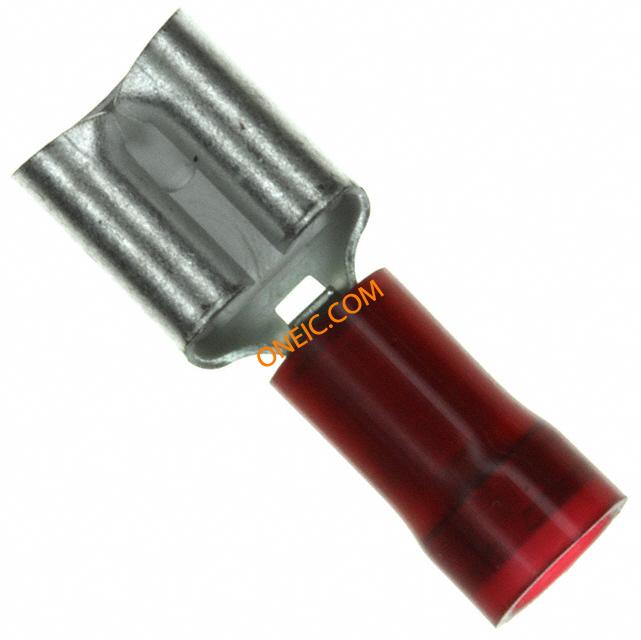

DNF18-250-C
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 20.57mm 17.37mm Tin Terminals USE 644-DNF18-250-M DISC FEMALE NYLON 22-18 AWG .25" DISC; NYLON; BARREL INSUL. TERMINAL, FEMALE DISCONNECT, 0.25IN, RED DISC,NYLON,BARRELINSUL. Female Disconnect, Nylon Barrel Insulated, 22, 18 AWG, .250 x .032 Tab Size, Funnel Entry, Pack of 100 |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | No | 海关税号 | 00000000 |
机械参数
| 颜色 | Red | 重量 | 0.127 |
| 包装方式 | Bulk | 插片宽度 | 0.250" (6.35mm) |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 1/4 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 总宽度 | 0.29" | 触头材料 | Brass |
| 绝缘颜色 | :Red | 总长度 | 0.810" (20.57mm) |
| 包装数量 | :100 | 主要材料 | QuickDisconnect |
| 端接样式 | Crimp | 绝缘直径 | 0.040" ~ 0.138" (1.02mm ~ 3.51mm) |
| 绝缘材料 - 类型 | Nylon | 线规或范围 - AWG | :22AWG |
产品信息
| 连接器性别 | Female | 系列 | DNF |
| 产品特性 | Serrated Termination | 制造商全称 | DNF18Series |
