点击放大查看

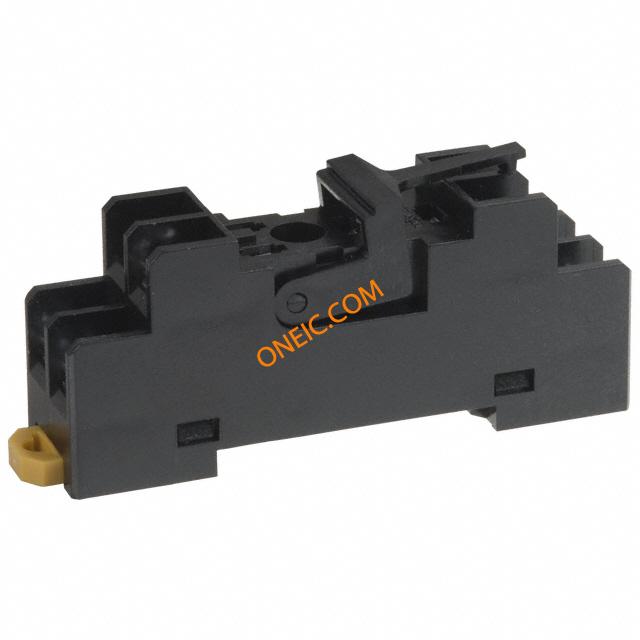

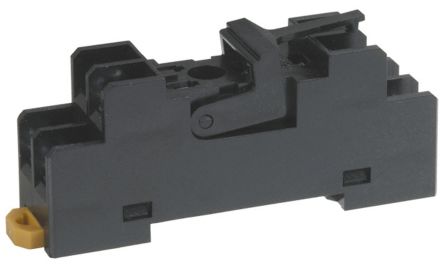

P2RF-05

制造商	Omron Corporation
描述	Relay Sockets & Hardware SOCKET Conn Relay Socket SKT 5 POS Solder ST SMD SOCKET TRACK SMD FOR G2R-1-S Socket,Relay;1POLE;G2R-1-S Socket; PIN:5; 10A; 250VAC; Application: H3RN-1,G2R-1-S; -55÷70°C 继电器插座, 适用于G2RS 通用继电器
分类	工业电源组件和继电器配件继电器插座及配件

对参数有疑问？问 AI 助手

商业参数

交货时间	56 Days	子类别	Connector Socket
零件号别名	6986250	产品类别	Relay Sockets & Hardware
标准包装数量	10	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	250V AC	极数	1
最大额定电流	10A

机械参数

深度	19.5	高度	54
重量	0.03 kg	引脚样式	screw terminals
端接方式	Solder	安装类型	Surface Mount
安装样式	DIN Rail	排数	1
总长度	75.5	尺寸/外形	see
端接样式	Plug In	触点数	5
位数	5	兼容外壳尺寸（如TM-700等）	G2RS 通用继电器

产品信息

类型	Relay Socket	连接器性别	SKT
系列	G2R1S	继电器类型	G2R-1-S
附件类型	Socket	单元数量	1
行业别名	P2RF-05	应用细节	H3RN-1, G2R-1-S
适用产品/相关产品	P2RF-05-E

环境参数

工作温度

-55...70°C
