首页产品分类工业电源组件和继电器功率继电器，2安培以上自锁继电器G2R-1-SN DC6(S)

点击放大查看

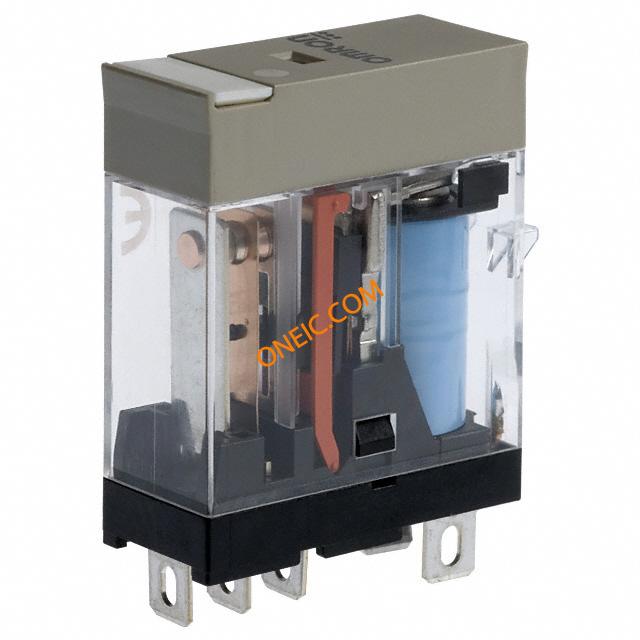

G2R-1-SN DC6(S)

制造商	Omron Corporation
描述	General Purpose Relays SPDT 10A 6VDC 68Ohm Socket RELAY GEN PURPOSE SPDT 10A 6V Electromechanical Relay SPDT 10A 6VDC 69Ohm Socket Relay
分类	工业电源组件和继电器功率继电器，2安培以上自锁继电器

对参数有疑问？问 AI 助手

商业参数

产品类别	General Purpose Relays	标准包装数量	1
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

电流	10 Amps	线圈类型	Non-Latching
线圈功率	530 mW	线圈电流	87 mA
释放时间	10ms	线圈电阻	69 Ohms
供电电压	6 VDC	开关电压	440 VAC, 125 VDC
Vgs(th)（最大）@ Id	0.9 VDC	开关电流	2,500VA, 300W
最小负载要求	100mA @ 5VDC	平均正向功率	0.53 W
集电极-发射极饱和电压（最大）@ Vge, Ic	4.2 VDC	触点额定电流	10 A
每极负载侧连接方式	10A @ 250VAC/30VDC

机械参数

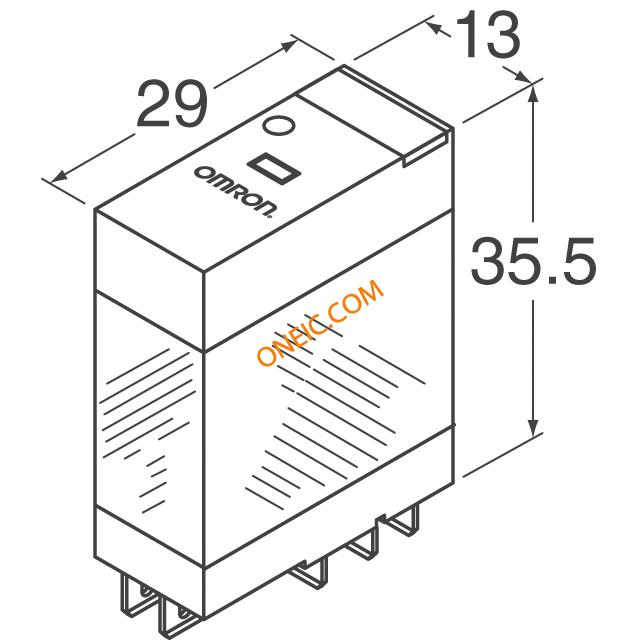

宽度	13 mm	高度	35.5 mm
长度	29 mm	包装方式	Bulk

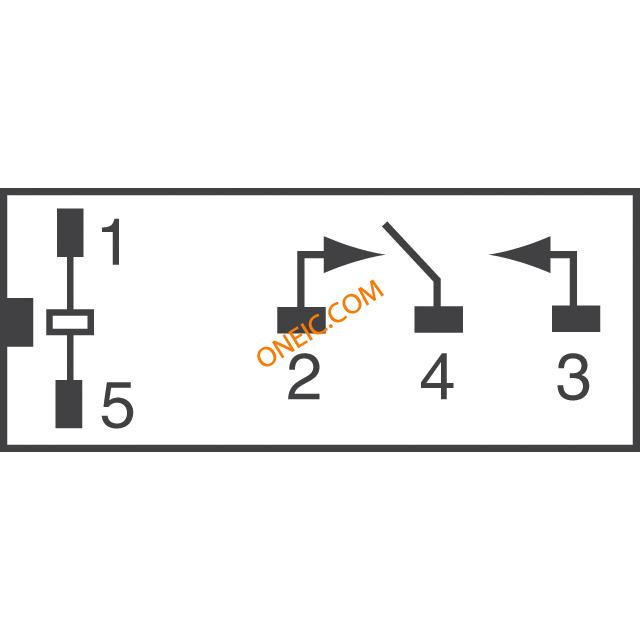

触点形式	1 Form C (SPDT-BM)	安装类型	Socketable
安装样式	Plug In	触头材料	Silver Alloy
端接样式	Plug In, QC - 0.187" (4.7mm)	接触件端接	Pin
典型触点布局	1C SPDT

产品信息

类型	Relays	系列	G2RS
产品特性	LED Indicator	功能	Single Side Stable
继电器类型	General Purpose	卡标准	General Purpose Relay

环境参数

额定寿命	100,000 ops	动作时间	15ms
工作温度	-40°C ~ 70°C

文档与媒体

PDF 文档

g2r-_-s_ds_csm42.pdf
