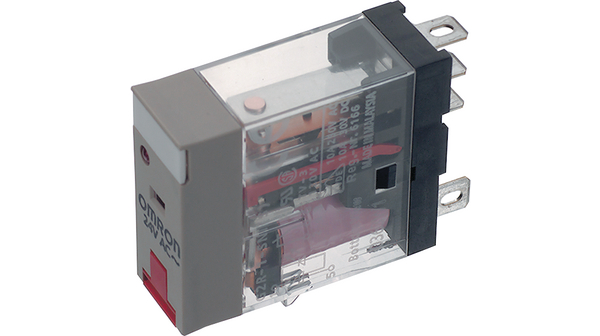

G2R-1-SNI AC110(S)

制造商	Omron Corporation
描述	General Purpose Relays SPDT 110VDC PLUG-IN W/LED RELAY GEN PURPOSE SPDT 10A 110V Electromechanical Relay SPDT 10A 240VAC 30KOhm Socket Relay Industrial relay, 110 VAC, 5566 Ohm, 0.9 VA, G2R-1-SNI AC110(S), Omron Electronic Components
分类	工业电源组件和继电器功率继电器，2安培以上自锁继电器

对参数有疑问？问 AI 助手

商业参数

产品类别	General Purpose Relays	标准包装数量	1
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

电气参数

电流	10 Amps	线圈类型	Non-Latching
线圈功率	0.9 VA	电感量	5566
线圈电流	9.5 mA	释放时间	10ms
测试电压	5	线圈电阻	5.566 kOhms
供电电压	110 VAC	开关电压	440 VAC, 125 VDC
开关容量	2500 VA	Vgs(th)（最大）@ Id	33 VAC
开关电流	2,500VA, 300W	最小负载要求	100mA @ 5VDC
平均正向功率	0.9 VA	集电极-发射极饱和电压（最大）@ Vge, Ic	88 VAC
触点额定电流	10 A	每极负载侧连接方式	10A @ 250VAC/30VDC
保护电压（VP）（2416）	IP 40

机械参数

尺寸	29 x 13 x 35.5 mm	宽度	13 mm
高度	35.5 mm	长度	29 mm
包装方式	Bulk	触点形式	1 Form C (SPDT-BM)
安装类型	Socketable	安装样式	Plug In
触头材料	Silver Alloy	端接样式	Plug In, QC - 0.187" (4.7mm)
触点数	1 change-over (CO)	接触件端接	Pin
典型触点布局	1C SPDT

产品信息

类型	Relays	设计类型	LED, test key
系列	G2RS	产品特性	LED Indicator, Test Button
功能	Single Side Stable	继电器类型	General Purpose
卡标准	General Purpose Relay

环境参数

额定寿命	100,000 ops	动作时间	15ms
工作温度	-40°C ~ 70°C

文档与媒体

PDF 文档

g2r-_-s_ds_csm42.pdf
