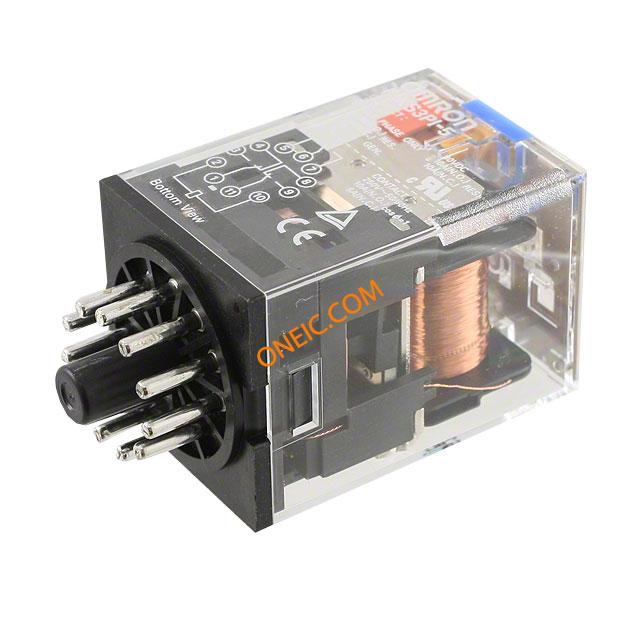

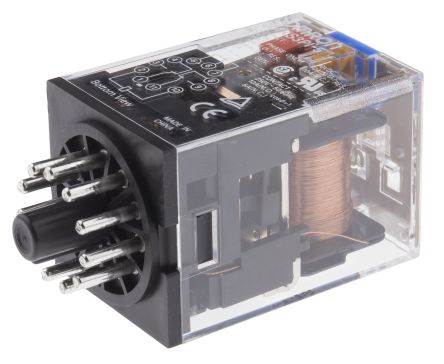

MKS3PI-5 DC24
| 制造商 | |
| 描述 | General Purpose Relays Basic 3PDT 24 VDC Std w/Lock Button Electromechanical Relay 3PDT 10A 24VDC 430Ohm Plug-In RELAY GEN PURPOSE 3PDT 10A 24V 11 pin 3PDT relay,10A 24Vdc coil POWER RELAY, 3PDT, 24VDC, 10A, PLUG IN 欧姆龙(OMRON) 功率继电器 Industrial relay 24 VDC 430 Ohm 1400 mW, MKS3PI-5 DC24, Omron Electronic Components Omron 3 刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 10 A, 24V dc |
| 分类 |
商业参数
| 零件号别名 | 1691489 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364190 | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.4 W |
| 最大功率 | 150 (NC) W, 300 (NO) W | 量程（°/s） | :OMRON - MK-S Series |
| 线圈电流 | 55.8 mA | 释放时间 | 20ms |
| 额定功率 | 300W|2.5kVA(NO)/150W|1.25kVA(NC) | 可见输出 | No |
| 额定电压 | 250 | 线圈电阻 | 430 Ohms |
| 推频（MHz/V） | Yes | 输出电流 | :10A |
| 供电电压 | 24 VDC | 开关电压 | 250 VAC, 250 VDC |
| Vgs(th)（最大）@ Id | 3.6 VDC | 钳位电压 | 19.2VDC |
| 开关电流 | 10 A | 二极管配置 | No |
| 最大额定电流 | 10 | 输出浪涌功率 | 1.25 (NC) kVA, 2.5 (NO) kVA |
| 触点电压（最大） | :250V | 最小输入电压 | 3.6VDC |
| 直流开关电压 | 250V dc | 平均正向功率 | 1.4 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VDC | 触点额定电流 | 10 A |
| 数字供电电压 | :30V | ||
机械参数
| 密封 | Unsealed | 深度 | 34.5mm |
| 宽度 | 34.5 mm | 高度 | 52.5 mm |
| 长度 | 34.5 mm | 重量 | 0 |
| 包装方式 | Bulk | 触点形式 | 3 Form C (3PDT-BM) |
| 安装类型 | Plug-In | 端子类型 | Plug-in |
| 安装样式 | Plug In | 冷却的封装 | Dust Cover |
| 触头材料 | Silver Alloy | 总长度 | 34.5 |
| 端接样式 | 11-Pin Circular Plug | 触点数 | 11 |
| 接触件端接 | Quick Connect | 典型触点布局 | 3PDT |
产品信息
| 类型 | General Purpose Relay | 系列 | MK-S |
| 产品特性 | Mechanical Indicator, Test Button | 继电器类型 | Non-Latching |
| 应用细节 | General Purpose | ||
环境参数
| 动作时间 | 30ms | 工作温度 | -40°C ~ 60°C |
文档与媒体
相关型号
PLE11-0
Omron Industrial
Relay Sockets & Hardware MK3 SCKT PCB TERM RELAY SOCKET 3PDT PCB MT MK Conn Relay Socket SKT ST SOCKET, PCB, 11 PIN 欧姆龙(OMRON) 微动开关
PL11
Omron Industrial
Relay Sockets & Hardware Relay Socket Panel Mount 3PDT MK Back-Connecting Socket Solder Terminals RELAY SOCKET 3PDT PANEL MT MK SOCKET, CHASSIS, 11 PIN RELAY SOCKET SOCKET;CHASSISMOUNT;MKSERIES SOCKET -MK3P RELAY
PF113A-E
Omron Industrial
Relay Sockets & Hardware 3PDT SOCKET MK Conn Relay Socket SKT 11 POS Solder ST Thru-Hole RELAY SOCKET 3PDT TRACK MT MK Relay Socket For Use With Various Series SOCKET, DIN/SURFACE, 11 PIN, RELAY ACCESSORY,RELAY;SOCKET;3;SURFACE/RAIL;MK3POLE;-10TODEGC 欧姆龙(OMRON) 共用插座 SOCKET -MK3P RELAY Relay socket, PF113A-E, Omron Electronic Components 继电器插座, 适用于各种系列

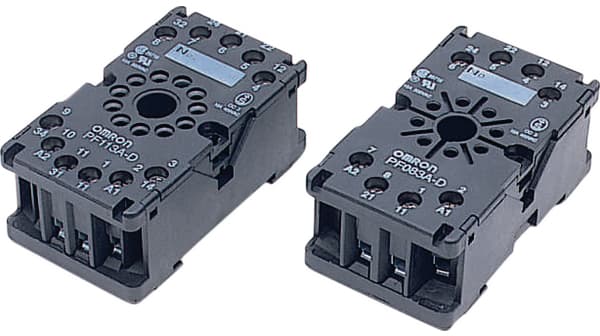

PF113A-D
