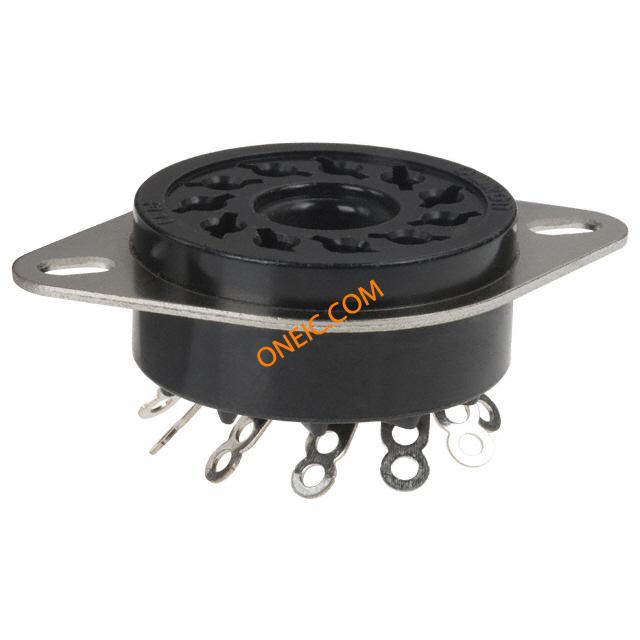

点击放大查看
PL11
| 制造商 | Omron Corporation |
| 描述 | Relay Sockets & Hardware Relay Socket Panel Mount 3PDT MK Back-Connecting Socket Solder Terminals RELAY SOCKET 3PDT PANEL MT MK SOCKET, CHASSIS, 11 PIN RELAY SOCKET SOCKET;CHASSISMOUNT;MKSERIES SOCKET -MK3P RELAY |
| 分类 |
商业参数
| 交货时间 | 56 Days | 其他名称 | Z838 |
| 子类别 | Misc Products | 零件号别名 | 1181273 |
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | :250VAC | 最大额定电流 | :10A |
机械参数
| 重量 | 0.016 | 安装类型 | Panel Mount |
| 端子类型 | :Solder Lug | 连接器类型 | :Solder |
| 安装样式 | Chassis | 引脚数 | :11 |
| 端接样式 | Plug In | 外径 | :30mm |
| 接触件端接 | :Solder | 位数 | 11 |
| 安装面板厚度 | :40mm | ||
产品信息
| 类型 | Socket | 附件类型 | Socket, Back Connecting |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | MK Series, 3PDT |
环境参数
| 工作温度 | 55 | ||
