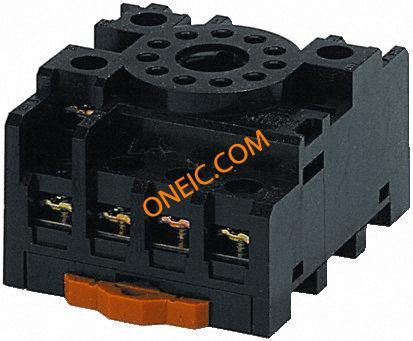

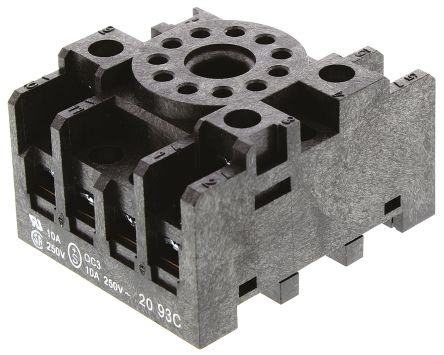

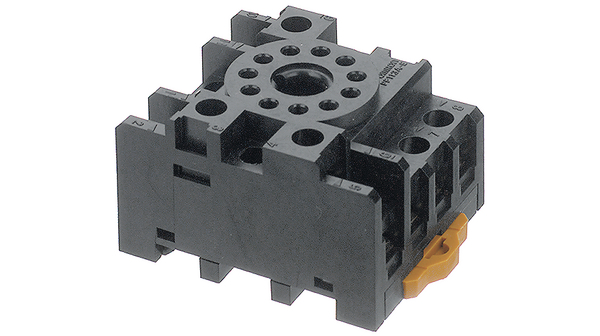

PF113A-E
| 制造商 | Omron Corporation |
| 描述 | Relay Sockets & Hardware 3PDT SOCKET MK Conn Relay Socket SKT 11 POS Solder ST Thru-Hole RELAY SOCKET 3PDT TRACK MT MK Relay Socket For Use With Various Series SOCKET, DIN/SURFACE, 11 PIN, RELAY ACCESSORY,RELAY;SOCKET;3;SURFACE/RAIL;MK3POLE;-10TODEGC 欧姆龙(OMRON) 共用插座 SOCKET -MK3P RELAY Relay socket, PF113A-E, Omron Electronic Components 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Socket |
| 零件号别名 | 1340950 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | :250VAC | 最大额定电流 | :10A |
机械参数
| 深度 | :31mm | 宽度 | :43mm |
| 高度 | 31 | 长度 | :52mm |
| 重量 | 0.05 | 端接方式 | Solder |
| 安装类型 | Through Hole | 端子类型 | :Screw |
| 连接器类型 | :Screw | 安装样式 | Track |
| 引脚数 | :11 | 总长度 | 52 |
| 端接样式 | Screw Terminal | 连接器颜色 | :Black |
| 触点数 | 11 | 位数 | 11 |
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | PF | 附件类型 | Socket |
| 应用细节 | At Buyer's request, Seller | 适用产品/相关产品 | MK Series, 3PDT |
