点击放大查看

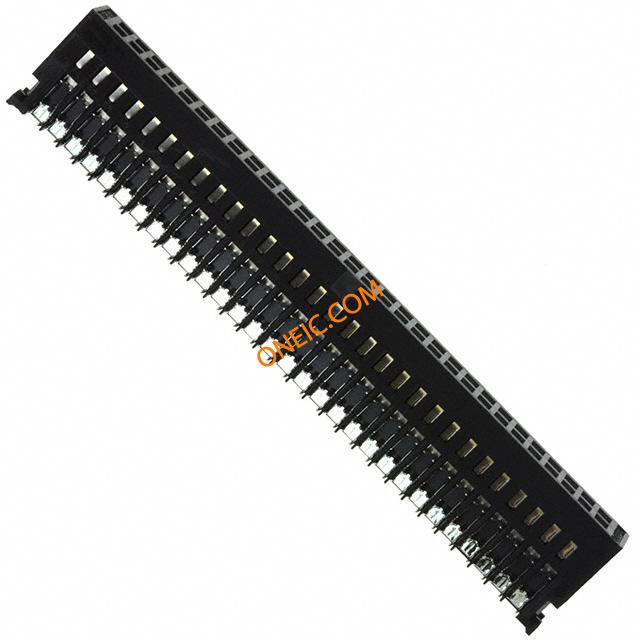

XG5M-6032-N
| 制造商 | |
| 描述 | Headers & Wire Housings IDC 2Row Socket 60P Size1 1PolarizeGuide CONN DBL ROW SOCKETS 60POS AWG24 Conn Housing SKT 60 POS 2.54mm Crimp ST WIRE-BOARD CONN, SOCKET, 60POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Discrete Wire Housing |
| 零件号别名 | 1756279 676018 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 30 | 工厂包装数量 | 30 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 量程（°/s） | :OMRON - XG5 Series | 额定电压 | 300 V |
| 开关功能 | Unlatched | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 24 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 60 | 接触件端接 | :IDC / IDT |
| 位数 | 60 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 连接器性别 | :Receptacle | 系列 | XG5 |
| 产品特性 | Closed End, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 有铅工艺兼容 | :Yes | ||
