点击放大查看

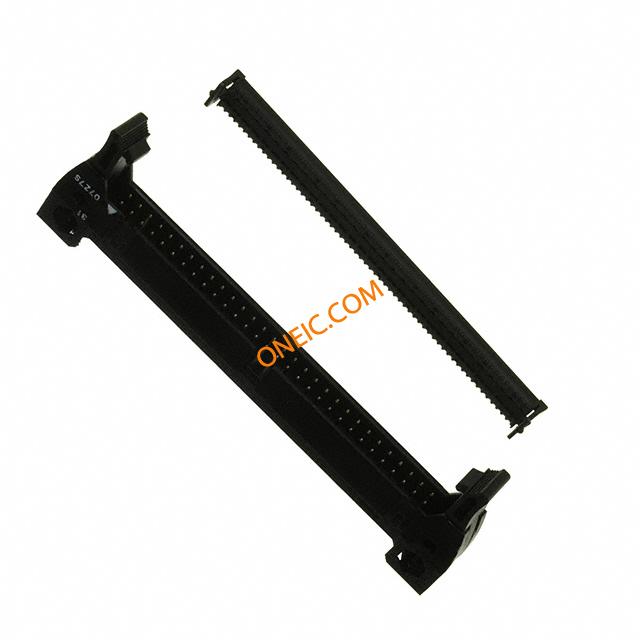

XG4E-6031
| 制造商 | |
| 描述 | Conn Ejector Header PL 60 POS 2.54mm IDT RA Cable Mount CONN PLUG 60POS 1A OPENEND COVER Headers & Wire Housings LongLock Plug 60Pin OpenCover 1Polarized |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756259 427524 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 30 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1 A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Pin (Male) | 触点数 | 60 |
| 位数 | 60 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | PL |
| 系列 | XG4 | 产品特性 | Feed Through |
| 产品子类型 | Plugs - Housings | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
