点击放大查看

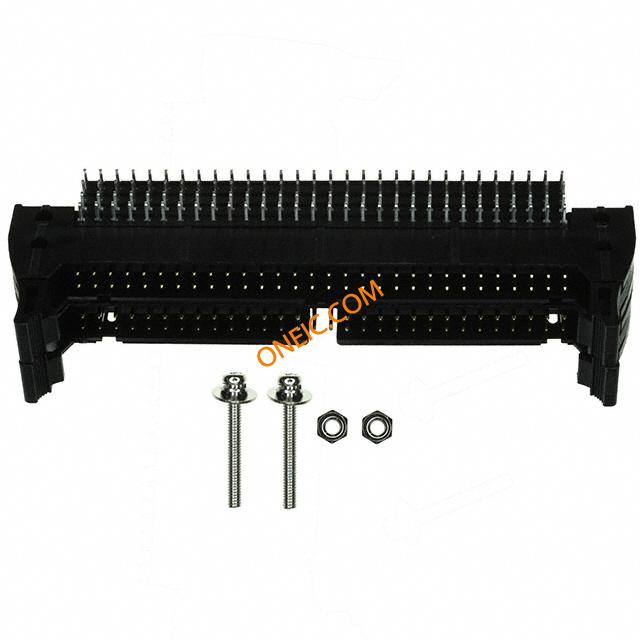

XG4A-6039-A
| 制造商 | |
| 描述 | Headers & Wire Housings 2Tier RA Plug 60x2P Long Lock 1Polarize CONN PLUG 60POS 3A R/A DIP 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756228 427414 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 21 | 工厂包装数量 | 21 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded, Stackable (2) |
| 接触镀层 | Gold | 紧固类型 | Latch, Long/Eject Hooks |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 120 |
| 位数 | 60, 60 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 系列 | XG4 | 产品子类型 | Plugs - PCB |
| 加载位置数 | All | ||
文档与媒体
相关型号
XG5M-6033-N
omron electronics
Conn Housing SKT 60 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 60POS AWG24 Headers & Wire Housings IDC 2Row Socket 60P Size1 2PolarizeGuide
XG5M-6035-N
omron electronics
Conn Housing SKT 60 POS 2.54mm Crimp ST CONN IDC SOCKET 60POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 60P Size2 1PolarizeGuide
XG4M-6030
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 60P NoStrainRelief 1Polr CONN SOCKET 60POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 60P NoStrainRelief 1Polr Conn IDC Connector SKT 60 POS 2.54mm IDT RA Cable Mount
XG5M-6036-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 60P Size2 2PolarizeGuide CONN IDC SOCKET 60POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 60P Size2 2PolarizeGuide
XG4M-6030-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 60Pin 1Polar CONN SOCKET 60POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 60Pin 1Polar Conn IDC Connector SKT 60 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4M-6031-T
Omron Electronics
Headers & Wire Housings Socket+StrainRelief Set 60Pin 2Polar CONN SOCKET 60POS FLAT CABLE IDC
XG4M-6031
omron electronics
Conn IDC Connector SKT 60 POS 2.54mm IDT RA Cable Mount CONN SOCKET 60POS FLAT CABLE IDC
XG5M-6032-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 60P Size1 1PolarizeGuide CONN DBL ROW SOCKETS 60POS AWG24 Conn Housing SKT 60 POS 2.54mm Crimp ST WIRE-BOARD CONN, SOCKET, 60POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件

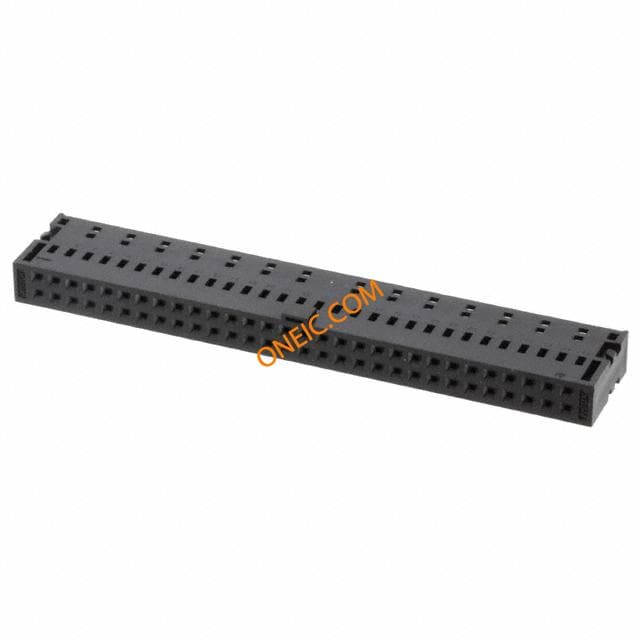

XG5N-601
