点击放大查看

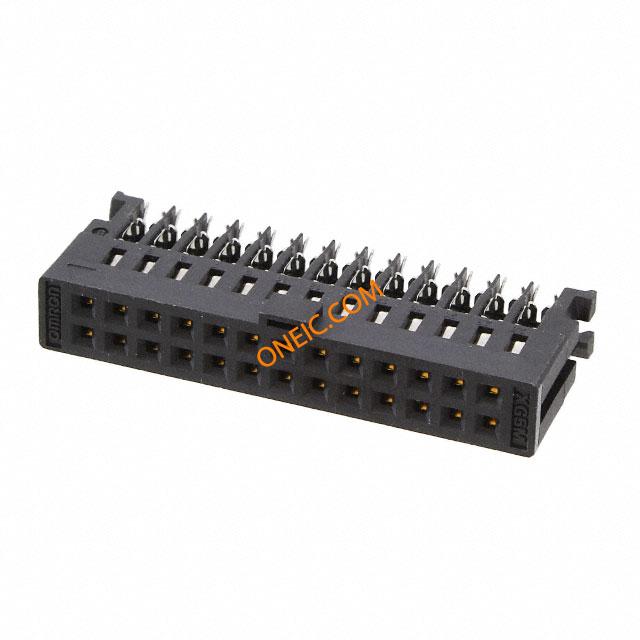

XG5M-2632-N
| 制造商 | |
| 描述 | Headers & Wire Housings IDC 2Row Socket 26P Size1 1PolarizeGuide Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG24 欧姆龙(OMRON) 连接电缆 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 80 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3 | 最小输入电压 | 300VAC |
机械参数
| 颜色 | Black | 深度 | 14.4 |
| 间距 | 0.100" (2.54mm) | 高度 | 7.1 |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 24 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 37.6 |
| 电缆端接方式 | IDC | 触点数 | 26 |
| 位数 | 26 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Housing | 连接器性别 | SKT |
| 产品特性 | Closed End, Polarizing Key | ||
