点击放大查看

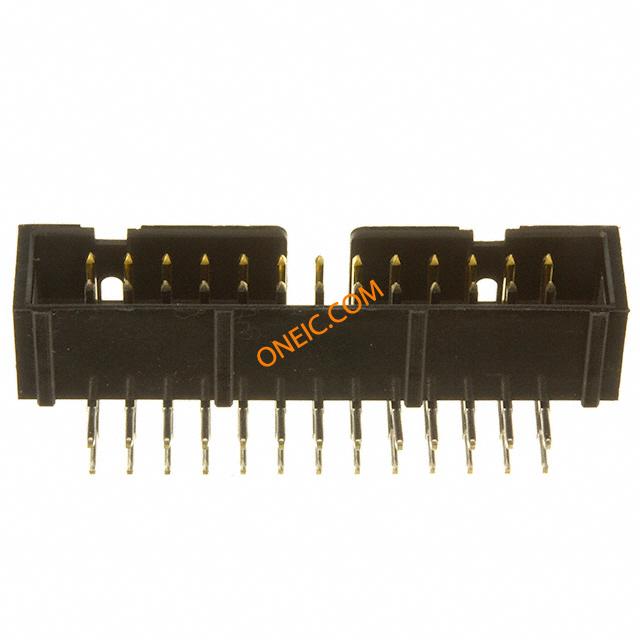

XG4C-2634
| 制造商 | |
| 描述 | Headers & Wire Housings MIL BoxType Plug 26P RightAngle 1Polarize Conn Shrouded Header PL 26 POS 2.54mm Solder RA Thru-Hole CONN PLUG 26POS 3A RT ANGL DIP 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1751348 385262 XG4C2634NC | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 70 | 工厂包装数量 | 70 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 |
| 最大额定电流 | 3 A | 绝缘电阻 | 1000 MOhms |
| 最小输入电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.2 |
| 间距 | 0.100" (2.54mm) | 高度 | 8.5 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 40.3 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 26 | 位数 | 26 |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | PL |
| 系列 | XG4 | 产品子类型 | Plugs - PCB |
| 行业别名 | XG4C-2634 | 加载位置数 | All |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
XG5M-2635-N
omron electronics
Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 26P Size2 1PolarizeGuide 欧姆龙(OMRON) 其它传感器附件
XG4M-2630-U
omron electronics
Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount CONN SOCKT 26POS STRN RLF W/LOCK Headers & Wire Housings Socket+NoLockStrain ReliefSet 26Pin 1Plr 欧姆龙(OMRON) 其它传感器附件
XG4M-2630-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 26Pin 1Polar Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount CONN SOCKET 26POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 26Pin 1Polar WIRE-BOARD CONN, SOCKET, 26POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-2632-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 26P Size1 1PolarizeGuide Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG24 欧姆龙(OMRON) 连接电缆
XG4H-2631
Omron Electronics
Board to Board & Mezzanine Connectors BtoB Socket 26Pin Straight 1Polarize CONN SOCKET 26POS STRAIGHT PCB 欧姆龙(OMRON) 其它传感器附件
XG4M-2630
Omron Electronics
Headers & Wire Housings OpenCoverSocket 26P NoStrainRelief 1Polr CONN SOCKET 26POS FLAT CABLE IDC Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件

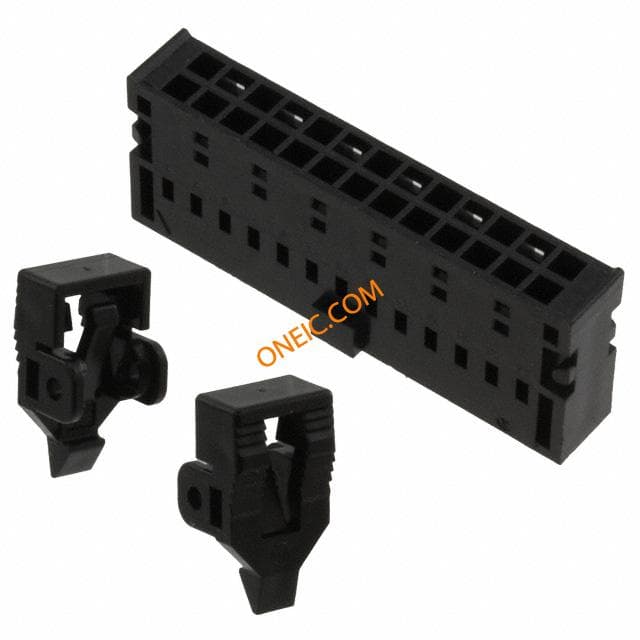

XG5N-261-U
