点击放大查看

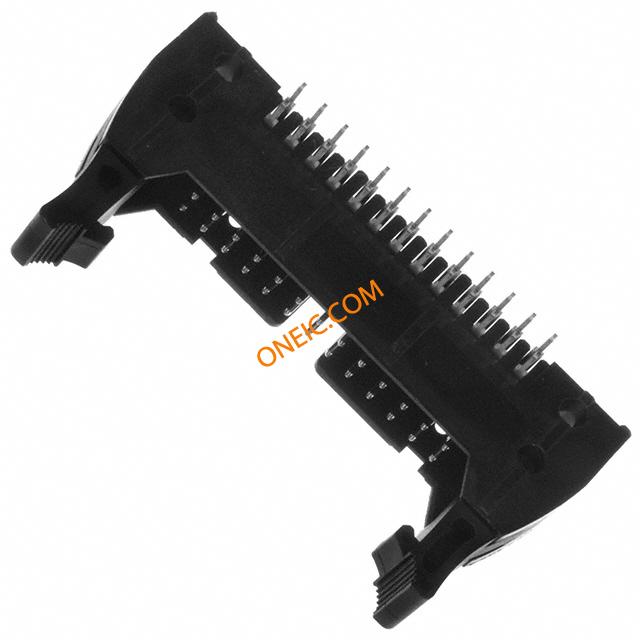

XG4A-2634
| 制造商 | |
| 描述 | Headers & Wire Housings Plug Long Lock 26P RightAngle 1Polarize CONN PLUG 26POS 3A RT ANGL DIP Conn Ejector Header PL 26 POS 2.54mm Solder RA Thru-Hole WIRE-BOARD CONNECTOR PLUG, 26POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 97 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756236 427445 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 60 | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Latch, Long/Eject Hooks | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 26 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 26 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 连接器性别 | :Header | 系列 | XG4 |
| 产品子类型 | Plugs - PCB | 加载位置数 | All |
文档与媒体
相关型号
XG5M-2635-N
omron electronics
Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 26P Size2 1PolarizeGuide 欧姆龙(OMRON) 其它传感器附件
XG4M-2630-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 26Pin 1Polar Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount CONN SOCKET 26POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 26Pin 1Polar WIRE-BOARD CONN, SOCKET, 26POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG5M-2632-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 26P Size1 1PolarizeGuide Conn Housing SKT 26 POS 2.54mm Crimp ST CONN IDC SOCKET 26POS AWG24 欧姆龙(OMRON) 连接电缆
XG4M-2630
Omron Electronics
Headers & Wire Housings OpenCoverSocket 26P NoStrainRelief 1Polr CONN SOCKET 26POS FLAT CABLE IDC Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件

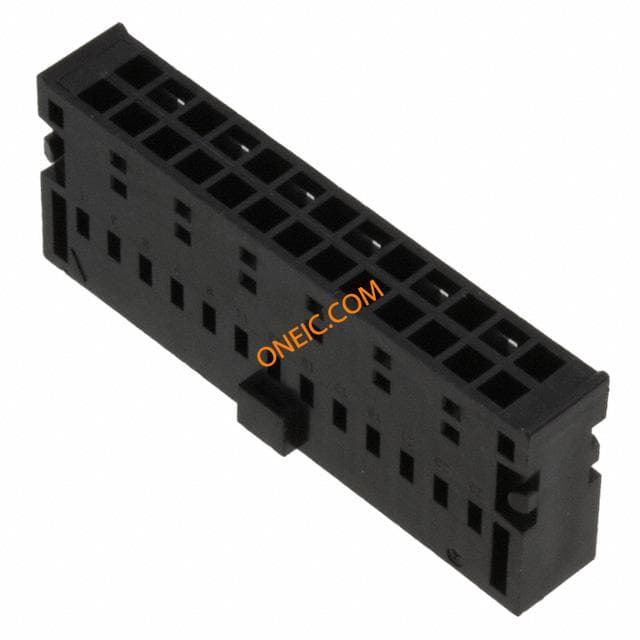

XG5N-261
