点击放大查看

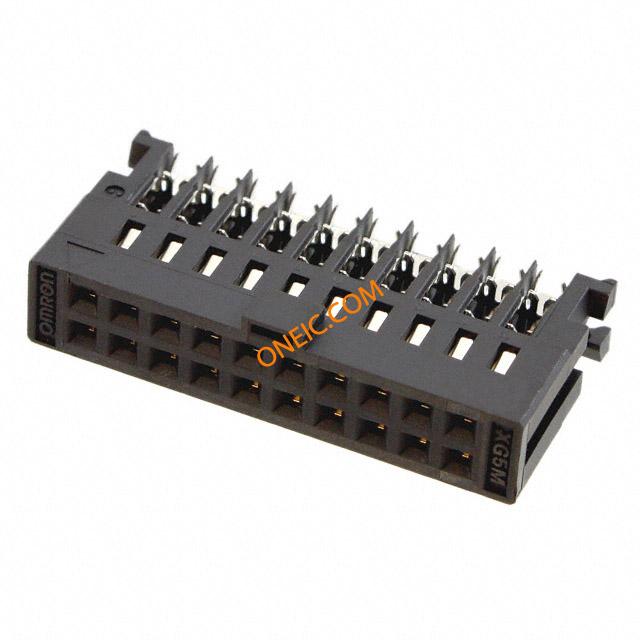

XG5M-2032-N
| 制造商 | |
| 描述 | Headers & Wire Housings IDC 2Row Socket 20P Size1 1PolarizeGuide Micro Controller Board CONN IDC SOCKET 20POS AWG24 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Misc Products |
| 零件号别名 | 385317 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 24 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 2 |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 触点数 | 13 | 位数 | 20 |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 系列 | XG5 | 产品特性 | Closed End, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | 行业别名 | XG5M-2032-N |
