点击放大查看

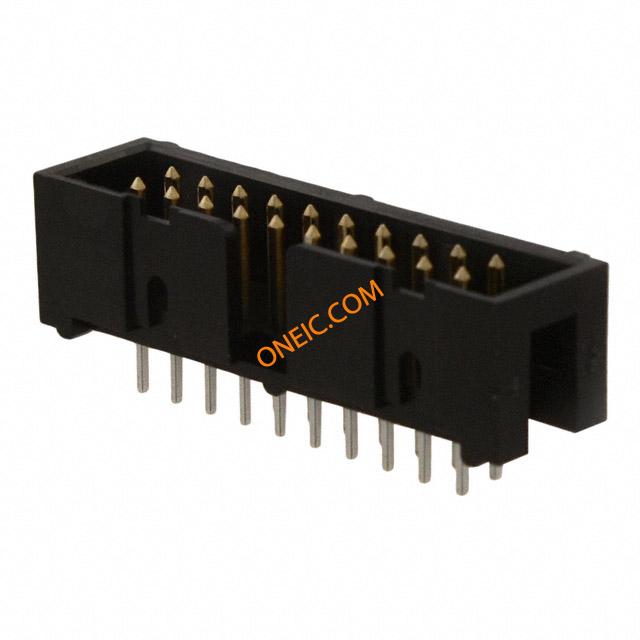

XG4C-2031
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole CONN PLUG 20POS 3A 300V STRT DIP Headers & Wire Housings MIL BoxType Plug 20P Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1751342 385259 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 |
| 最大额定电流 | 3 A | 最小输入电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 8.5 |
| 间距 | 2.54 mm | 高度 | 9 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.100" (2.54mm) |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 32.7 |
| 端接样式 | Through Hole | 触点数 | 20 |
| 位数 | 20 | 接触镀层厚度 | 5.9µin (0.15µm) |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | XG4 | 产品子类型 | Headers |
| 行业别名 | XG4C-2031 | 输出配置 | Through Hole |
| 加载位置数 | All | ||
文档与媒体
相关型号
XG4M-2030-T
Omron Electronics
ヘッダ & ワイヤハウジング Socket+StrainRelief Set 20Pin 1Polar Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount CONN SOCKET 20POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 20Pin 1Polar WIRE-BOARD CONN, SOCKET, 20POS, 2.54MM 欧姆龙(OMRON) 接近开关
XG4M-2030
Omron Electronics
Headers & Wire Housings OpenCoverSocket 20P NoStrainRelief 1Polr CONN SOCKET 20POS FLAT CABLE IDC Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONN, SOCKET, 20POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG5M-2035-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 20P Size2 1PolarizeGuide Conn IDC Connector SKT 20 POS 2.54mm IDT ST Cable Mount CONN IDC SOCKET 20POS AWG28-26 欧姆龙(OMRON) 其它传感器附件
XG4M-2030-U
Omron Electronics
ヘッダ & ワイヤハウジング Socket+NoLockStrain ReliefSet 20Pin 1Plr Conn IDC Connector SKT 20 POS 2.54mm IDT RA Cable Mount CONN SOCKT 20POS STRN RLF W/LOCK 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG4H-2031
Omron Electronics
基板間およびメザニンコネクタ BtoB Socket 20Pin Straight 1Polarize CONN SOCKET 20POS STRAIGHT PCB Board to Board & Mezzanine Connectors BtoB Socket 20Pin Straight 1Polarize Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole 欧姆龙(OMRON) 其它传感器附件
XG5M-2032-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 20P Size1 1PolarizeGuide Micro Controller Board CONN IDC SOCKET 20POS AWG24 欧姆龙(OMRON) 其它传感器附件

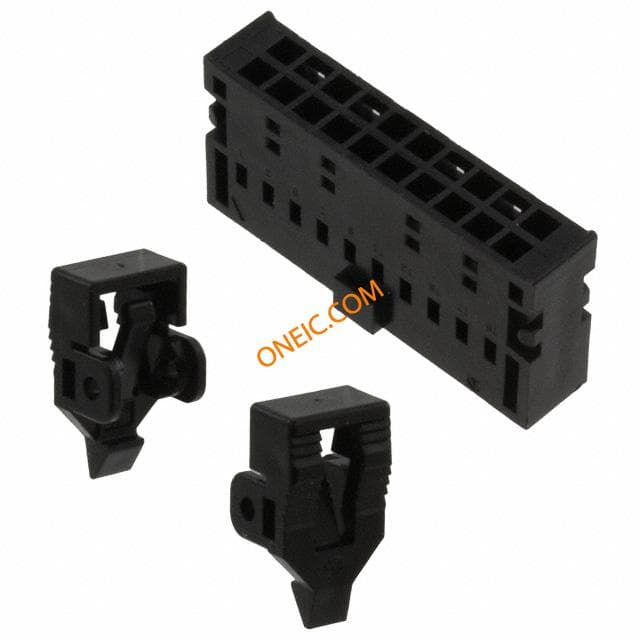

XG5N-201-U
