点击放大查看

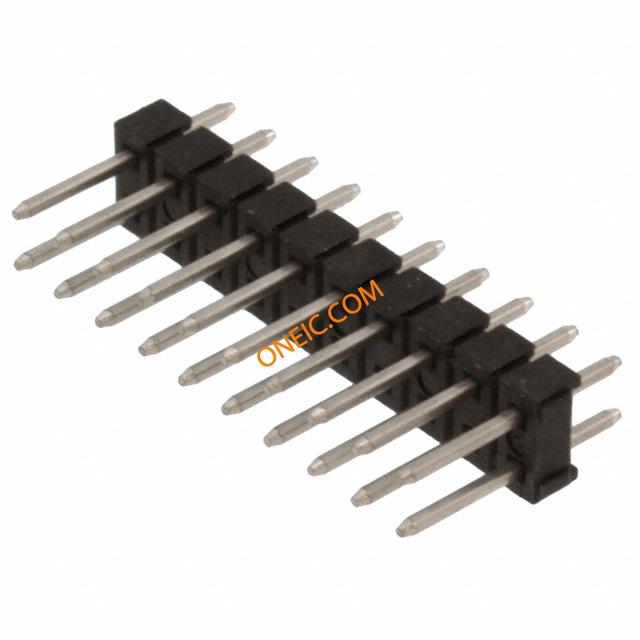

XG8W-2041
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング Plug Straight Term 20Contact SnPlating CONN PLUG 20POS DBL ROW STR TIN Headers & Wire Housings Plug Straight Term 20Contact SnPlating Conn Unshrouded Header PL 20 POS 2.54mm Solder ST Thru-Hole |
| 分类 |
商业参数
| 交货时间 | 138 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 427696 XG8W2041NC | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 200 | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 20 | 位数 | 20 |
| 接触长度 - 配合 | 0.236" (6.00mm) | ||
产品信息
| 系列 | XG8 | 产品子类型 | Plugs - PCB |
| 加载位置数 | All | ||
