首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）XG4M-1030-T

点击放大查看

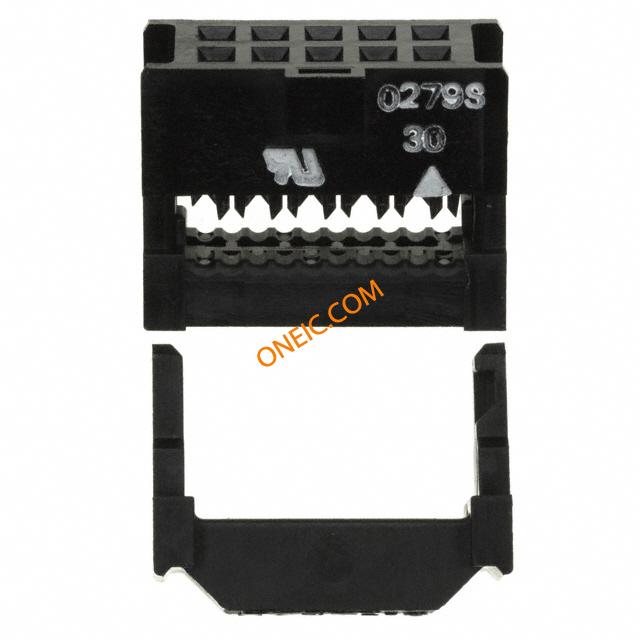

XG4M-1030-T

制造商	Omron Corporation
描述	Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount CONN SOCKET 10POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 10Pin 1Polar WIRE-BOARD CONN, SOCKET, 10POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

交货时间	89 Days	子类别	Connector Headers and PCB Receptacles
零件号别名	1756261 427544	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	180

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85366910

电气参数

量程（°/s）	:OMRON - XG4 Series	额定电压	250 V
接触电阻	20	最大额定电流	1 A
最小输入电压	250VAC

机械参数

颜色	Black	间距	2.54 mm
高度	16.1	重量	0
包装方式	Bulk	导线类型	Ribbon Cable
导线线规	28 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
外壳颜色	Black	安装类型	Cable Mount
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Cable	排数	2
触头材料	Phosphor Bronze	壳体材料	Polybutylene Terephthalate
总长度	17.3	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	10	接触件端接	:IDC / IDT
位数	10	接触镀层厚度	5.9µin (0.15µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	XG4	产品特性	Feed Through; Polarizing Key, Strain Relief
产品子类型	Receptacles / Sockets - Housings	有铅工艺兼容	:Yes

文档与媒体

PDF 文档

How to Read Date Codes

PDF 文档

XG4_0913.pdf

PDF 文档

en-xg4.pdf
