点击放大查看

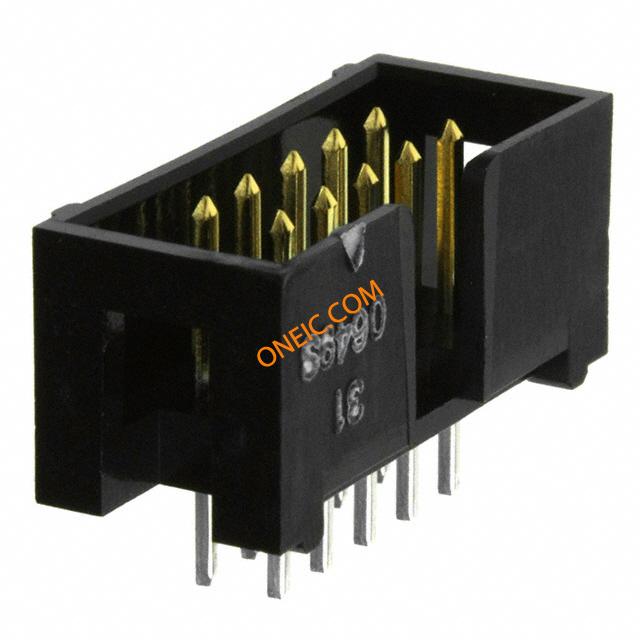

XG4C-1031
| 制造商 | |
| 描述 | Conn Shrouded Header PL 10 POS 2.54mm Solder ST Thru-Hole CONN PLUG 10POS 3A 300V STRT DIP Headers & Wire Housings MIL BoxType Plug 10P Straight 1Polarize 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1753114 385256 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 |
| 最大额定电流 | 3 A | 绝缘电阻 | 1000 MOhms |
| 最小输入电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.5 |
| 间距 | 2.54 mm | 高度 | 9 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.100" (2.54mm) |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 20 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 5.9µin (0.15µm) | 每排/每行位置数 | All |
产品信息
| 类型 | Shrouded Header | 连接器性别 | PL |
| 系列 | XG4 | 产品子类型 | Plugs - PCB |
| 行业别名 | XG4C-1031 | 输出配置 | Through Hole |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
XG5M-1031-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 10P Size1 0PolarizeGuide CONN DBL ROW SOCKETS 10POS AWG24
XG5M-1035-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 10P Size2 1PolarizeGuide CONN IDC SOCKET 10POS AWG28-26
XG4M-1031-U
omron electronics
Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount CONN SOCKET 10POS FLAT CABLE IDC Headers & Wire Housings Socket+NoLockStrain ReliefSet 10Pin 0Plr
XG5M-1034-N
omron electronics
Conn Housing SKT 10 POS 2.54mm Crimp ST CONN IDC SOCKET 10POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 10P Size2 0PolarizeGuide
XG4M-1031
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 10P NoStrainRelief 0Polr CONN SOCKET 10POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 10P NoStrainRelief 0Polr Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount
XG4M-1030
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 10P NoStrainRelief 1Polr CONN SOCKET 10POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 10P NoStrainRelief 1Polr Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount WIRE-BOARD CONN, SOCKET, 10POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG5M-1032-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 10P Size1 1PolarizeGuide Conn Housing SKT 10 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 10POS AWG24 Headers & Wire Housings IDC 2Row Socket 10P Size1 1PolarizeGuide 欧姆龙(OMRON) 其它传感器附件
XG4M-1031-T
Omron Electronics
Headers & Wire Housings Socket+StrainRelief Set 10Pin 0Polar CONN SOCKET 10POS FLAT CABLE IDC
XG4M-1030-U
Omron Electronics
Headers & Wire Housings Socket+NoLockStrain ReliefSet 10Pin 1Plr CONN SOCKT 10POS STRN RLF W/LOCK Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4M-1030-T
omron electronics
Conn IDC Connector SKT 10 POS 2.54mm IDT RA Cable Mount CONN SOCKET 10POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 10Pin 1Polar WIRE-BOARD CONN, SOCKET, 10POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG4H-1031
omron electronics
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 10POS STRAIGHT PCB Board to Board & Mezzanine Connectors BtoB Socket 10Pin Straight 1Polarize

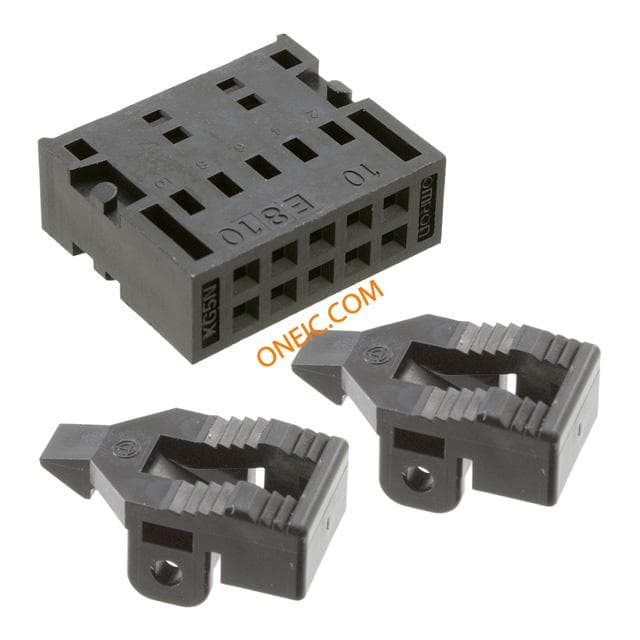

XG5N-100-U
Omron Electronics Inc-EMC Div
CONN SOCKET 10POS IDC W/ LOK

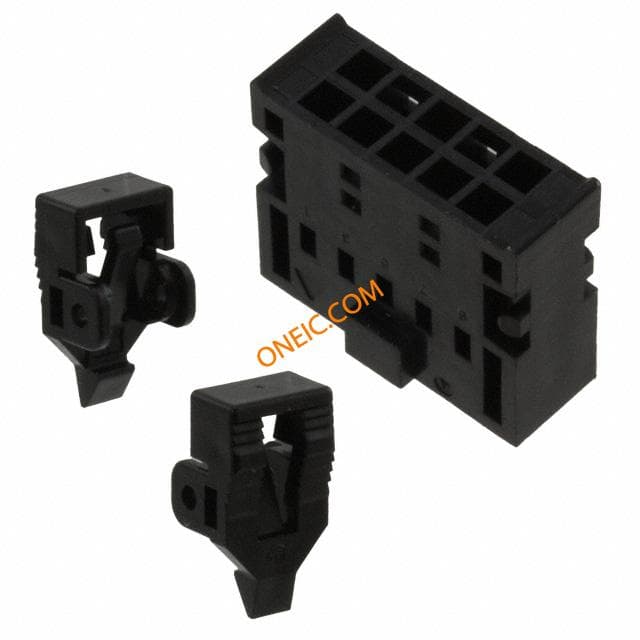

XG5N-101-U
