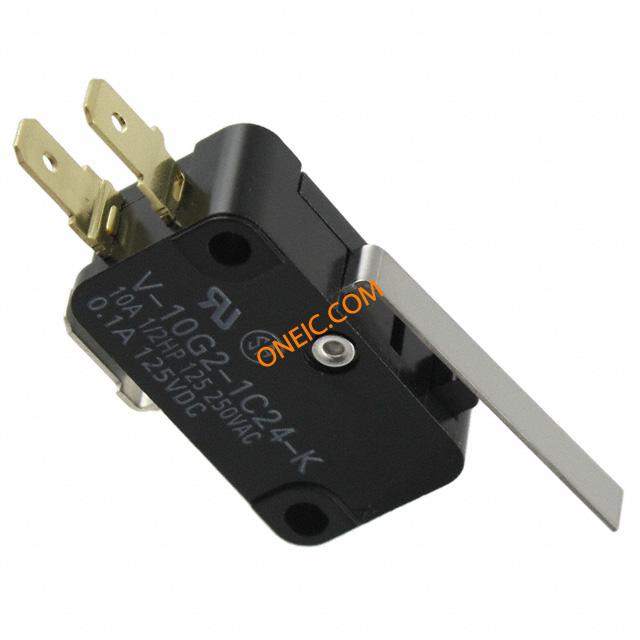

点击放大查看
V-10G2-1C24-K
| 制造商 | |
| 描述 | Switch Snap Action N.O./N.C. SPDT Hinge Lever Quick Connect 10A 250VAC 250VDC 248.57VA 0.59N Screw Mount SWITCH LEVR SPDT 10A .187QC 250V Switch;Miniature;Snap Action;SPDT;Solder-Q.C.TERM.;HINGE LEVER;STAND.LOAD;ACT Basic / Snap Action Switches Hinge lever SPDT 10A MICRO SWITCH, HINGE LEVER, SPDT 10A 250V Snap Action Switch Actuator Type: Lever (Straight) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 10 Amps |
| 分类 |
商业参数
| 交货时间 | 49 Days | 子类别 | Switch Snap Action |
| 零件号别名 | 1500090 691886 BY OMI V-10G2-1C24-K V10G21C24KBYOMI | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | Trays | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85365005 |
电气参数
| 电路 | SPDT | 额定功率 | 248.57@(CSA/UL) VA |
| 额定电压 | 250 V | 开关功能 | On-Mom |
| 差动行程 | * | 最大额定电流 | 10@250VAC 8VDC A |
| 开关功能/额定值 | N.O./N.C. | 供电电压 (Vcc/Vdd) | :250V |
| 额定交流电压（相对地/中性线） | :250V | ||
机械参数
| 重量 | 0.218699 oz | 包装方式 | * |
| 预行程 | * | 超行程 | * |
| 触点形式 | SPDT | 致动器类型 | Lever, Straight |
| 安装类型 | Screw Mount | 释放力 | * |
| 端子类型 | Quick Connect | 操作力 | 0.59 N |
| 触头材料 | Silver | 端接样式 | Quick Connect - 0.187" (4.7mm) |
| 按钮样式/尺寸 | Hinge Lever | 开关驱动电平 | SPDT |
| 典型触点布局 | :SPDT | ||
产品信息
| 类型 | Standard | 系列 | V |
| 产品特性 | * | 电气寿命 | * |
| 行业别名 | V-10G2-1C24-K | 工作高度 | * |
环境参数
| 密封等级 | IP 40 | 机械寿命 | 50000000 Cycles |
| 防护等级 | * | 工作温度 | -25 to 80 °C |
