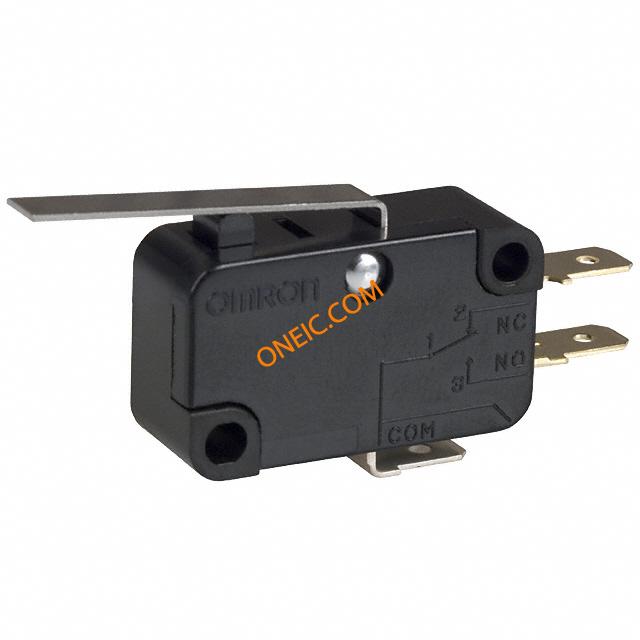

V-15G2-1C25-K
| 制造商 | |
| 描述 | Switch Snap Action N.O./N.C. SPDT Hinge Lever Quick Connect 15A 250VAC 250VDC 372.85VA 1.23N Screw Mount SWITCH LEVR SPDT 15A .187QC 250V Switch;MINI.;Snap Action;SPDT;Solder-Q.C.TERM.;HINGE LEV.STD LOAD Actuator Basic / Snap Action Switches Hinge lever SPDT 15A MICRO SWITCH, HINGE LEVER, SPDT 15A 250V 欧姆龙(OMRON) 微动开关 Snap Action Switch Actuator Type: Lever (Straight) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 15 Amps |
| 分类 |
商业参数
| 交货时间 | 365 Days | 子类别 | Not Specified |
| 零件号别名 | 682507 9859314 BY OMI V-15G2-1C25-K V15G21C25KBYOMI | 产品类别 | Basic / Snap Action Switches |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 电路 | SPDT | 额定功率 | 372.85@(CSA/UL) VA |
| 额定电压 | 250 V | 开关功能 | On-Mom |
| 差动行程 | * | 最大额定电流 | 15@250VAC 8VDC A |
| 开关功能/额定值 | N.O./N.C. | 供电电压 (Vcc/Vdd) | :250V |
| 额定交流电压（相对地/中性线） | :250V | ||
机械参数
| 重量 | 0.218699 oz | 包装方式 | * |
| 预行程 | * | 超行程 | * |
| 触点形式 | SPDT | 致动器类型 | Lever, Straight |
| 安装类型 | Screw Mount | 释放力 | * |
| 端子类型 | Quick Connect | 操作力 | 1.23 N |
| 触头材料 | Silver Alloy | 端接样式 | Quick Connect - 0.187" (4.7mm) |
| 按钮样式/尺寸 | Hinge Lever | 开关驱动电平 | SPDT |
| 典型触点布局 | :SPDT | ||
产品信息
| 类型 | Standard | 系列 | V |
| 产品特性 | * | 电气寿命 | * |
| 行业别名 | V15G21C25KBYOMI | 工作高度 | * |
| 适用产品/相关产品 | V-15G2-1C25-KBYOMI | ||
环境参数
| 密封等级 | IP 40 | 机械寿命 | 50000000 Cycles |
| 防护等级 | * | 工作温度 | -25 to 80 °C |
