G6B-2114P-US-DC12
| 制造商 | |
| 描述 | General Purpose Relays Power PCB Relay SPST-NO + -NC 12VDC Electromechanical Relay SPST-NO/SPST-NC 5A 12VDC 480Ohm Through Hole RELAY GEN PURPOSE DPST 5A 12V Relay;E-Mech;Power;SPST-NO,SPST-NC;Cur-Rtg5A;Ctrl-V12DC;Vol-Rtg250/30AC/DC General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1A+1B SPST-NO+SPST-NC Current : 5 Amps Mounting : PC Board Operating Function: Single Side Stable |
| 分类 |
商业参数
| 交货时间 | 119 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 375142 G6B-2114P-USDC12 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 5 Amps | 线圈类型 | Non-Latching |
| 线圈功率 | 300 mW | 线圈电流 | 16.7 mA |
| 释放时间 | 10ms | 额定功率 | 150W|1.25kVA |
| 释放范围（时间） | 10ms | 可见输出 | No |
| 额定电压 | 125 | 线圈电阻 | 480 Ohms |
| 推频（MHz/V） | No | 供电电压 | 12 VDC |
| 开关电压 | 380VAC, 125VDC - Max | Vgs(th)（最大）@ Id | 1.2 VDC |
| 钳位电压 | 9.6VDC | 二极管配置 | No |
| 断态电压 | 1.2 VDC | 最大额定电流 | 5 |
| 最小输入电压 | 1.2VDC | 平均正向功率 | 200 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC | 触点额定电流 | 5A |
| 触点额定值 @ 电压 | 5A | ||

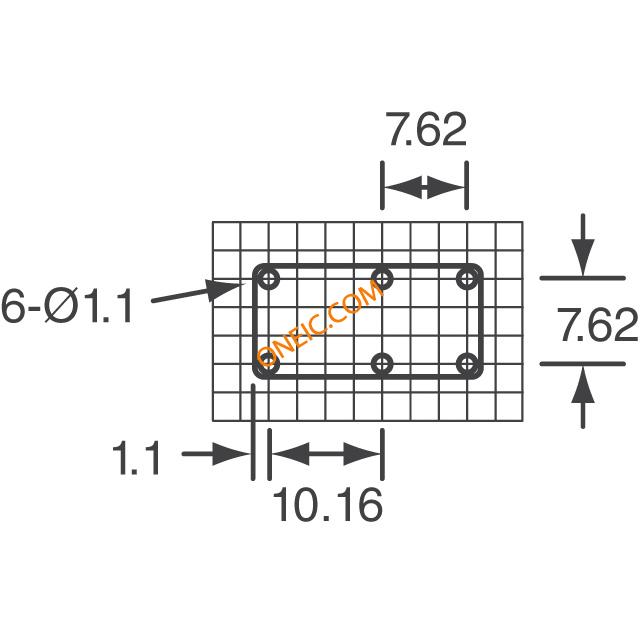

机械参数
| 密封 | Sealed | 深度 | 11 |
| 高度 | 11 | 包装方式 | Bulk |
| 触点形式 | 1 Form A (SPST-NO), 1 Form B (SPST-NC) | 触点形状 | DPST-NO/NC (1 Form A and B) |
| 安装类型 | Through Hole | 安装样式 | SMD/SMT |
| 冷却的封装 | DIP | 操作力 | 10ms |
| 触头材料 | Silver Alloy | 总长度 | 20 |
| 端接样式 | PC Pin | 触点数 | 6 |
| 接触件端接 | PCB | 典型触点布局 | SPST-NO|SPST-NC |
产品信息
| 类型 | Subminiature Relay | 系列 | G6B |
| 产品特性 | Sealed - Fully | 功能 | Single Side Stable |
| 继电器类型 | Non-Latching | 卡标准 | General Purpose Relay |
| 行业别名 | G6B-2114P-US-DC12 | ||
环境参数
| 动作时间 | 10ms | 工作温度 | -25°C ~ 70°C |
