点击放大查看

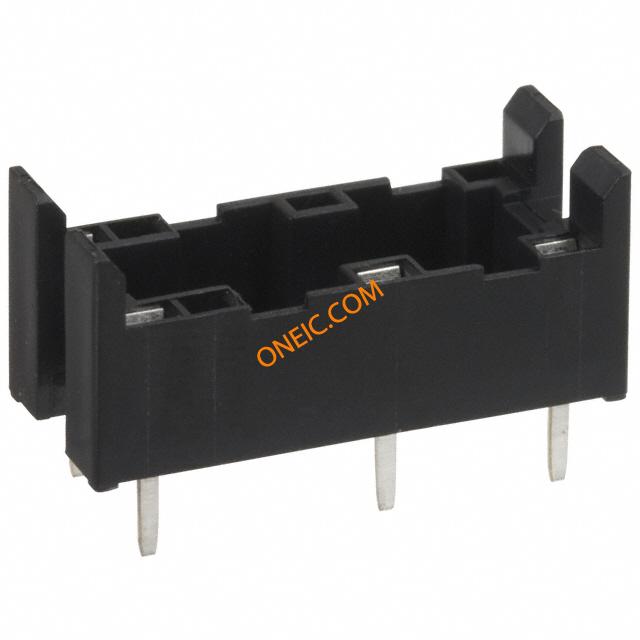

P6B-04P
| 制造商 | |
| 描述 | Relay Sockets & Hardware PC MT SOCKET FOR G6B Conn Relay Socket SKT 4 POS Solder ST Thru-Hole ACCESSORY RELAY P6B04P RELAY SOCKET PC MNT FOR G6B SER Relay Socket For Use With Various Series SOCKET, PCB, G6B, RELAY Socket,Relay;BACKCONNECTING,FORG6B-1ANDG6BUSERIES,PCBTERMINAL Socket; PIN:6; Series: G6B 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 最小起订量 | 1 | 交货时间 | 96 Days |
| 单位包装 | 20 | 子类别 | Connector Socket |
| 零件号别名 | 380992 9934901 OMRP6B04P | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 额定电压 | :250VAC | 极数 | 1 |
| 最大额定电流 | 8 A | ||
机械参数
| 深度 | 10 mm | 宽度 | :10mm |
| 高度 | 10.1 mm | 长度 | :24mm |
| 重量 | 0.0035 | 包装方式 | Bulk |
| 排间距 | 7.62 mm | 端接方式 | Solder |
| 安装类型 | Straight | 端子类型 | :Through Hole |
| 连接器类型 | :Quick Connect | 安装样式 | Socket |
| 引脚数 | :4 | 排数 | 2 |
| 封装形式 | MONOSTABLE | 触头材料 | Silver Cadmium Oxide |
| 总长度 | 23.2 mm | 包装数量 | 20 |
| 端接样式 | PC Pin | 触点数 | 4 |
| 位数 | 4 | ||
产品信息
| SPG | 20 | 类型 | Relay Socket |
| 连接器性别 | SKT | 系列 | G6B-1114P, G6B-1174P |
| 功能 | GeneralPurpose | 匹配码 | P6B04P |
| 继电器类型 | ElectroMechanical | CAD图纸 | 3D CAD Model |
| 附件类型 | Sockets | 单元数量 | 1 |
| 行业别名 | P6B-04P | 标准交期 | 15 weeks |
| 应用细节 | Meets FCC Part 68 requirements | 适用产品/相关产品 | G6B Series, SPST |
环境参数
| 工作温度 | :70°C | ||
