点击放大查看

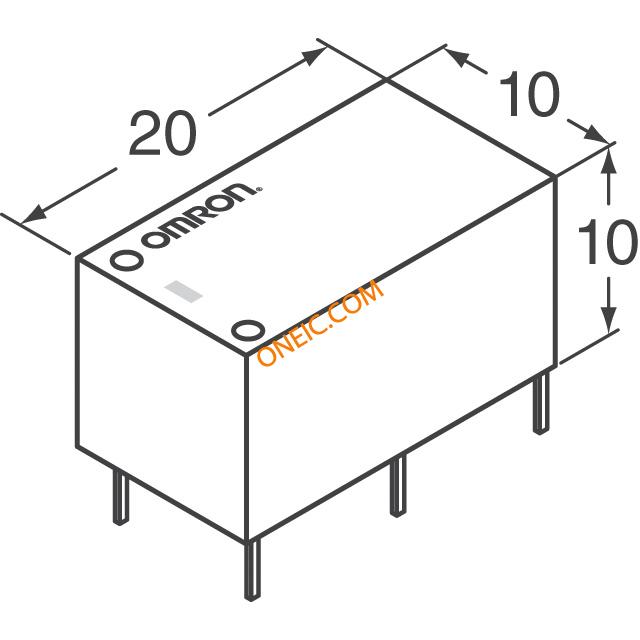

G6B-1114P-US-DC9
| 制造商 | |
| 描述 | General Purpose Relays Power PCB Relay RELAY GENERAL PURPOSE SPST 5A 9V Electromechanical Relay SPST-NO 5A 9VDC Through Hole 欧姆龙(OMRON) 功率继电器 General Purpose Relay Coil Voltage: 9 VDC Contact Configuration: 1A SPST-NO Current : 5 Amps Mounting : PC Board Operating Function: Single Side Stable |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 375105 G6B-1055M G6B1055M G6B1114PUS9DC | 产品类别 | General Purpose Relays |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 5 Amps | 线圈类型 | Non Latching |
| 线圈功率 | 200 mW | 线圈电流 | 22.2mA |
| 释放时间 | 10ms | 线圈电阻 | 405 Ohms |
| 供电电压 | 9 V | 开关电压 | 380VAC, 125VDC - Max |
| Vgs(th)（最大）@ Id | 0.9 VDC | 平均正向功率 | 200 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 6.3 VDC | 触点额定电流 | 5A |
机械参数
| 包装方式 | Bulk | 触点形式 | 1 Form A (SPST-NO) |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 触头材料 | Silver Alloy | 端接样式 | PC Pin |
| 典型触点布局 | 1A SPST-NO | ||
产品信息
| 类型 | Relays | 系列 | G6B |
| 产品特性 | Sealed - Fully | 功能 | Single Side Stable |
| 继电器类型 | General Purpose | 卡标准 | General Purpose Relay |
环境参数
| 动作时间 | 10ms | 工作温度 | -25°C ~ 70°C |
文档与媒体
PDF 文档
PDF 文档
