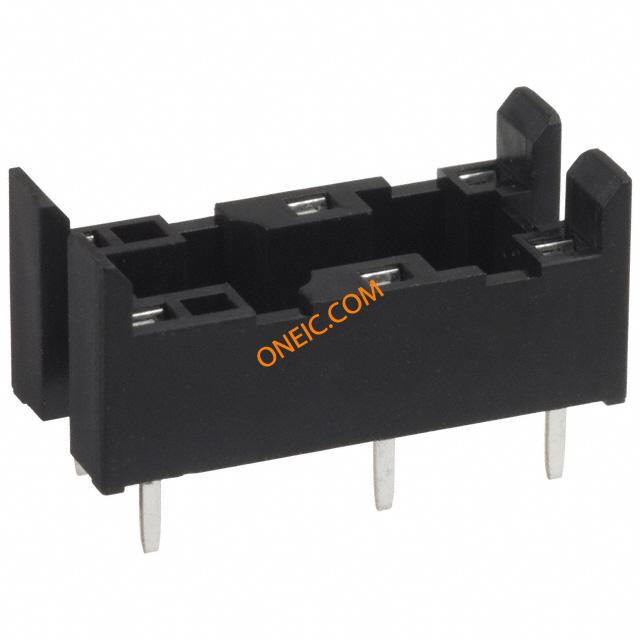

P6B-26P
| 制造商 | |
| 描述 | Relay Sockets & Hardware PC MT SOCKET FOR G6B Conn Relay Socket SKT 6 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G6B SER Accessory; Relay; Socket; PCB; G6B relay; UL Recognized; CSA Certified; Power SOCKET, PCB, G6B-2, RELAYS Socket,Relay;PCB;G6Brelay;ULRecognized,CSACertified;Power 欧姆龙(OMRON) 共用插座 Socket; PIN:6; Series: G6B SOCKET 继电器插座, 适用于各种系列 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Socket |
| 零件号别名 | 1181039 380994 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ULRecognized,CSACertified |
| 海关税号 | 85364900 | ||
电气参数
| 额定电压 | :250VAC | 极数 | 1, 2 |
| 最大额定电流 | :5A | ||
机械参数
| 深度 | :11mm | 宽度 | :23.2mm |
| 高度 | 10.1 | 长度 | :7mm |
| 重量 | 0.0035 | 包装方式 | Bulk |
| 排间距 | 7.62 | 端接方式 | Solder |
| 安装类型 | Straight | 端子类型 | :Through Hole |
| 连接器类型 | :Quick Connect | 安装样式 | Socket |
| 引脚数 | :6 | 排数 | 2 |
| 触头材料 | Silver Cadmium Oxide | 总长度 | 23.2 |
| 包装数量 | 10 | 端接样式 | PC Pin |
| 触点数 | 6 | 位数 | 6 |
| 安装孔直径 | :1.1mm | ||
产品信息
| SPG | 10 | 类型 | Relay Socket |
| 连接器性别 | SKT | 系列 | G6B-2114P, G6B-2214P |
| 功能 | GeneralPurpose | 继电器类型 | ElectroMechanical |
| 附件类型 | Sockets | 单元数量 | 1 |
| 行业别名 | P6B-26P | 应用细节 | Meets FCC Part 68 requirements |
| 适用产品/相关产品 | G6B Series, DPST | ||
环境参数
| 可用温度范围 | -25to+70°C | ||
