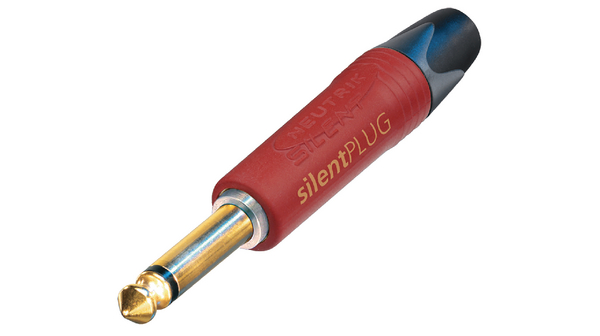

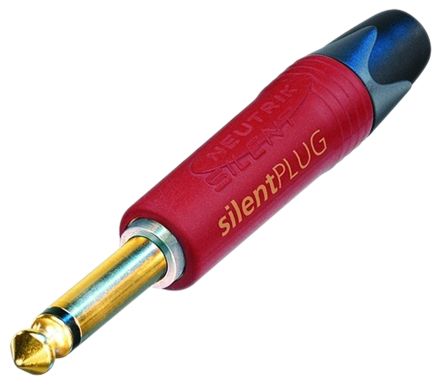

NP2X-AU-SILENT
| 制造商 | |
| 描述 | Phone Connectors 2 POLE GOLD RED SHELL Conn Audio PL 2 POS Solder ST Cable Mount 2 Terminal 1 Port 2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch
Special version of 2 pole plug with integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot swapping guitars. The integrated silent switch is based on the REED technology and guarantees a lifetime beyond 10'000 mating cycles.
Product Highlights:
Hermetically sealed and magnetically operated switch
No wear, constant contact resistance
No corrosion or pollution of switch, durable and long-lasting
Lifetime beyond 10'000 mating cycles JACK PLUG 1/4" 2-POLE SILENT silentPLUG1/4inPlug-mono-reedswitch-redrubberoverlay/gold Jack plug SILENT 6.35 mm 2P, NP2X-AU-SILENT, Neutrik Neutrik silentPLUG PX 公 电缆安装 插孔连接器, 15A, 50 V |
| 分类 |
商业参数
| 产品类别 | Phone Connectors | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | 材料阻燃等级 | :UL 94 HB |
电气参数
| 额定电压 | 50 V | 供电电压 | 1/4 in |
| 最大额定电流 | ≤15A | 开关功能/额定值 | Not Switched |
机械参数
| 尺寸 | 1/4" | 颜色 | Red |
| 重量 | 0.789431 oz | 材料（通用） | :Brass (CuZn39Pb3) |
| 绝缘类型 | Uninsulated | 方向 | Vertical |
| 端接方式 | Solder | 引脚直径 | 0.24" |
| 安装类型 | :Cable | 行程角度 | Straight |
| 连接器类型 | :Circular | 接触镀层 | Gold |
| 安装样式 | Cable | 本体材料 | :Metal |
| 触头材料 | Brass | 壳体材料 | Rubber |
| 主要材料 | Phone | 端接样式 | Solder |
| 连接器颜色 | :Red | 触点数 | 2 (TS) |
| 接触件端接 | :Solder | 法兰下方引脚尺寸 | :1/4" |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Plug | 连接器性别 | Male |
| 系列 | silentPLUG | 制造商全称 | XSeries |
环境参数
| 插拔次数 | :1000 | 工作温度 | :65°C |
