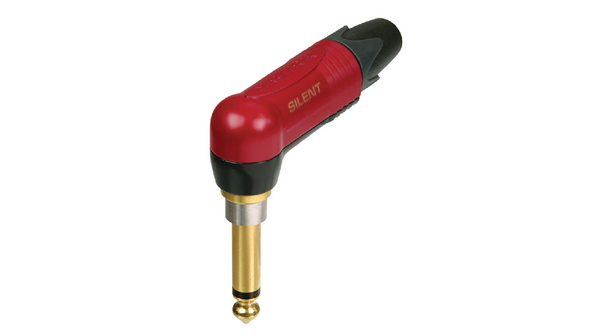

NP2RX-AU-SILENT
| 制造商 | |
| 描述 | Phone Connectors 2 POLE GOLD RT ANGLE RED SILENT SWITCH Conn Audio PL 2 POS RA 2 Terminal 1 Port 2 pole right angle 1/4" professional phone plug, gold plated contacts, red coating, silent switch
Special version of 2 pole plug with integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot swapping guitars. The integrated silent switch is based on the REED technology and guarantees a lifetime beyond 10'000 mating cycles.
Product Highlights:
Hermetically sealed and magnetically operated switch
No wear, constant contact resistance
No corrosion or pollution of switch, durable and long-lasting
Lifetime beyond 10'000 mating cycles CONNECTOR, RCA/PHONO, PLUG, 2POS PLUG, 1/4" JACK, 90DEG, 2POLE 1/4INCHPLUG2POLERIGHTANGLEW/GOLDREEDSWITCH Jack plug SILENT 6.35 mm 2P, NP2RX-AU-SILENT, Neutrik Neutrik silentPLUG PX 公 直角 电缆安装 插孔连接器, 15A, 50 V |
| 分类 |
商业参数
| 产品类别 | Phone Connectors | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366910 | 认证机构 | :EIA RS453, IEC 60603-11 |
电气参数
| 额定电压 | 50 V | 导体绞线 | :1mm² |
| 供电电压 | 1/4 in | 击穿电压 | :1000VDC |
| 最大额定电流 | :15A | 绝缘电阻 | :1Gohm |
| 开关功能/额定值 | Not Switched | ||
机械参数
| 尺寸 | 1/4" | 颜色 | Red |
| 重量 | 1.234589 oz | 材料（通用） | :Zinc Die-cast |
| 包装方式 | Bulk | 绝缘类型 | Uninsulated |
| 导线线规 | :18AWG | 方向 | Right Angle |
| 端接方式 | Solder | 引脚直径 | :6.35mm |
| 安装类型 | :Cable | 行程角度 | RightAngle |
| 连接器类型 | :Phono (RCA) Plugs | 接触镀层 | Gold |
| 安装样式 | Cable | 壳体镀层 | :Black Chrome |
| 本体材料 | :Metal | 触头材料 | Brass |
| 主要材料 | Phone | 端接样式 | Solder |
| 连接器颜色 | :Red | 外径 | :6.35mm |
| 触点数 | 2 (TS, Mono) | 接触件端接 | :Solder |
| 法兰下方引脚尺寸 | :6.35mm | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7mm | ||
产品信息
| 类型 | Plug | 连接器性别 | Male |
| 系列 | :silentPLUG | 制造商全称 | XSeries |
环境参数
| 工作温度 | :+65°C | ||
