点击放大查看

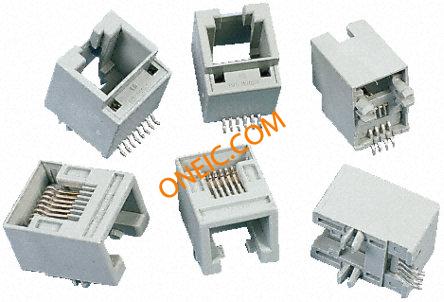

95501-6889
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Tube Cat 3 8/8 way PCB mount SMT r/a RJ socket,1.5A Modular Connectors / Ethernet Connectors RA SMT 8/8 RJ45 LOW PROFILE JACK, RJ45, LP, 8/8 Molex RJ45 系列 直角 母 RJ45 连接器 , Cat3, 无屏蔽, 表面安装型 |
| 分类 |
商业参数
| 零件号别名 | 0955016889 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 4536 |
合规参数
| RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1.5 A |
| 连接器类型 - 电压输入 | :Cat3 | ||
机械参数
| 颜色 | Black | 深度 | 18.1mm |
| 间距 | 1.27 mm | 长度 | 15.24mm |
| 重量 | 0.236 | 包装方式 | Tube |
| 屏蔽 | Unshielded | 方向 | Right Angle |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 连接器类型 | :RJ45 | 接触镀层 | Gold over Nickel |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | SMD | 触点数 | :8 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | :8 |
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | 95501 | USOC 编码 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 3 |
文档与媒体
相关型号

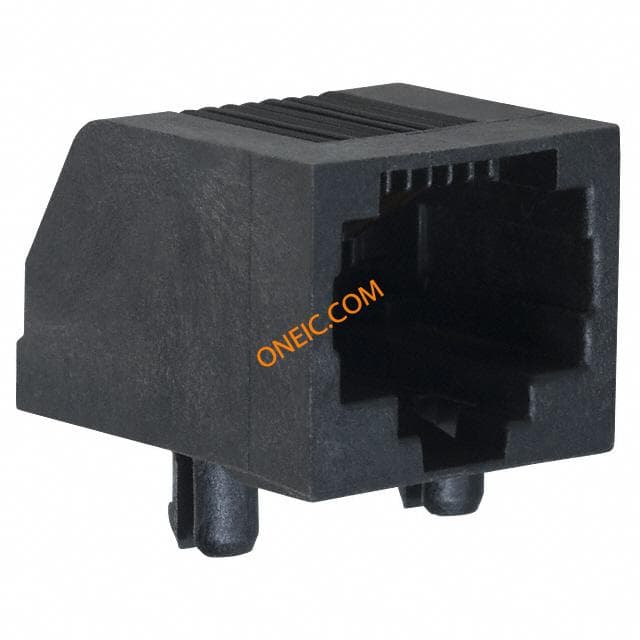

5555764-1
te connectivity / amp
Conn RJ-45 F 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Tray Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C Cat 3 modular RJ45 jack, 8/8, R/A, SMT Modular Connectors / Ethernet Connectors 1X1 8/8 R/A LPRO Conn RJ-45 F 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO JACK, SMT, SIDE ENTRY, 8/8 CAT3 RJ45 MODULAR JACK, 8POS, 1 PORT MODJACK,RJ45,8POSITION,1X1,SINGLEPORT,PCB TE Connectivity 直角 母 RJ45 连接器 , Cat3, 无屏蔽, 表面安装型 MJ,LPF,R/A,8P,SMT,BULK PACK
95501-6889
molex
Conn RJ-45 RCP 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Tube Cat 3 8/8 way PCB mount SMT r/a RJ socket,1.5A Modular Connectors / Ethernet Connectors RA SMT 8/8 RJ45 LOW PROFILE JACK, RJ45, LP, 8/8 Molex RJ45 系列 直角 母 RJ45 连接器 , Cat3, 无屏蔽, 表面安装型

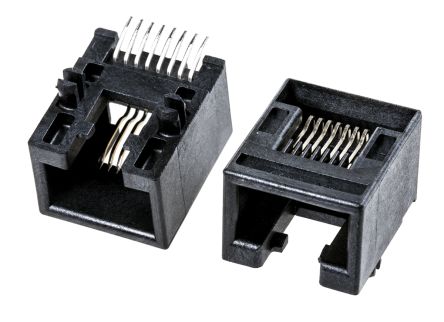

85502-5012
