点击放大查看

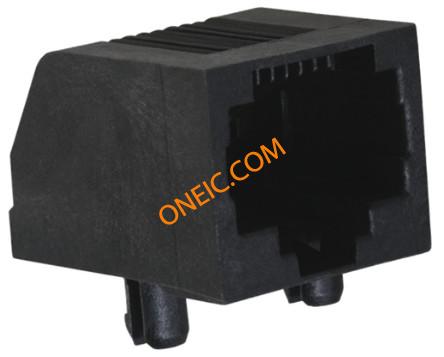

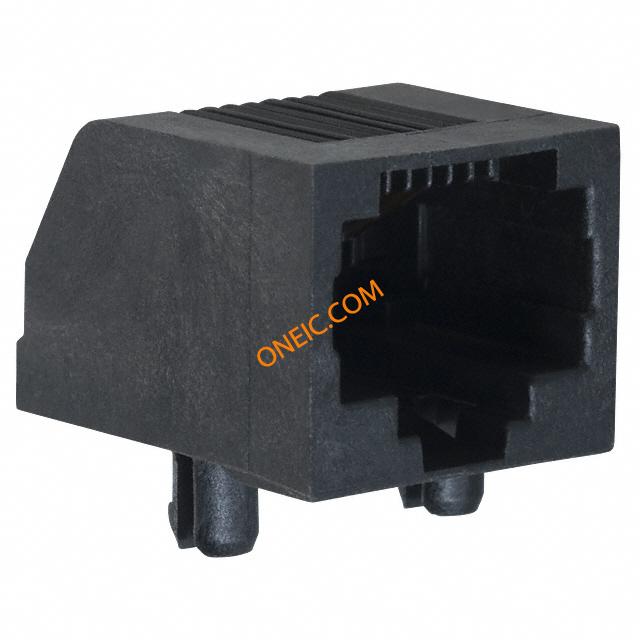

5555764-1
| 制造商 | |
| 描述 | Conn RJ-45 F 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Tray Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C Cat 3 modular RJ45 jack, 8/8, R/A, SMT Modular Connectors / Ethernet Connectors 1X1 8/8 R/A LPRO Conn RJ-45 F 8 POS 1.27mm Solder RA SMD 8 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO JACK, SMT, SIDE ENTRY, 8/8 CAT3 RJ45 MODULAR JACK, 8POS, 1 PORT MODJACK,RJ45,8POSITION,1X1,SINGLEPORT,PCB TE Connectivity 直角 母 RJ45 连接器 , Cat3, 无屏蔽, 表面安装型 MJ,LPF,R/A,8P,SMT,BULK PACK |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 15 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| LED | Without | 最大额定电流 | 1.5/Contact A |
| 最小供电电压 | 150VAC | 连接器类型 - 电压输入 | Cat3 |
机械参数
| 颜色 | Black | 深度 | 15.37mm |
| 间距 | 1.27 mm | 宽度 | 12.7mm |
| 高度 | 12.7 mm | 长度 | 18.24mm |
| 重量 | 0.002 | LED颜色 | Does Not Contain LED |
| 锁定类型 | Standard | 包装方式 | Tray |
| 屏蔽 | Unshielded | 方向 | 90° Angle (Right) |
| 屏蔽类型 | No | 端接方式 | Solder |
| 外壳颜色 | Black | 反向插孔 | No |
| 安装类型 | Surface Mount | 卡扣方向（或“接线片方向”） | Down |
| 连接器类型 | RJ45 | 接触镀层 | Tin over Nickel |
| 法兰特征 | No | 接地类型 | Without |
| 安装样式 | Surface Mount | 排数 | 1 |
| 电路板厚度 | 1.57 [0.062] | 高度（英寸） | 12.70 [0.500] |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | High Temperature Nylon | 总长度 | 15.37 mm |
| 包装数量 | Tray | 面板安装类型 | With |
| 端接样式 | Solder | 连接器颜色 | :Black |
| 触点数 | 8 | 接触件端接 | :Surface Mount Right Angle |
| 位数 | 8 | 接触镀层厚度 | 50µin (1.27µm) |
| 每排/每行位置数 | 8P8C | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | F |
| 系列 | 555 | 产品特性 | Board Lock |
| 端口样式 | Single | USOC 编码 | RJ45 |
| 编码、键控 | No | 产品子类型 | Jack |
| 类别编号 | Cat 3 | 端口数 | 1 |
| 插孔配置 | 1 x 1 | 射频系列/标准 | 5555764 |
| 性能类别 | Cat 3 | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat3 | 工作温度 | -40°C ~ 85°C |
