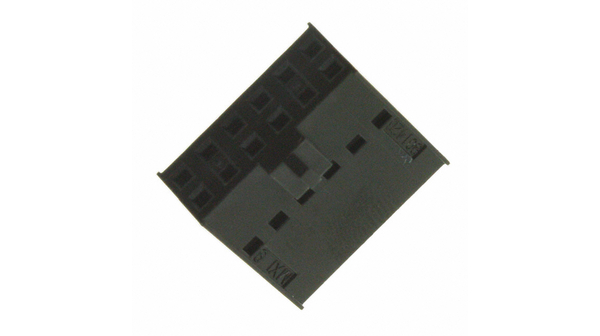

90142-0012
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 12 POS 2.54mm Crimp ST Cable Mount Bag 12 way dual row housing Headers & Wire Housings HSG 2X06P VT POLAR FRIC LOCK HOUSING, CRIMP, RECEPTACLE, 2.54MM, 12P WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM Crimp housing 2 x 6P, 90142-0012, Molex Molex C-GRID III 系列 2 行 2.54mm 节距 12 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901420012 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 350 V | 接触电阻 | :20mohm |
| 最大额定电流 | 3 A | 绝缘电阻 | :5000Mohm |
机械参数
| 深度 | 15.24mm | 间距 | 2.54 mm |
| 宽度 | 7.72mm | 长度 | 15.24mm |
| 重量 | 0.083 | 材料（通用） | :Polyphenylene Oxide UL94V-1 |
| 安装类型 | Straight | 连接器类型 | :Wire to Board, :Wire-to-Board |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 12 |
| 位数 | :12 | ||
产品信息
| 类型 | Housing | 连接器性别 | F |
| 系列 | 90142 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | C-Grid III Connector |
环境参数
| 工作温度 | :105°C | ||
